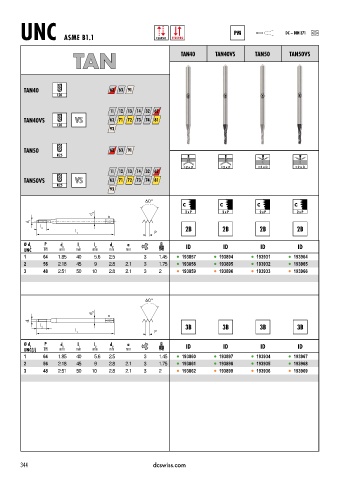

Page 347 - DC_SWISS(Catalogue_TM_ES-EN)

PM DC – DIN 371
UNC ASME B1.1 CLASSIC SYNCHRO

TAN TAN40 TAN40VS TAN50 TAN50VS

TAN40 62 63 91
L20

11 12 13 14 32 62
TAN40VS VS 63 71 72 73 74 81
L20
93

TAN50 62 63 91
R25
< 2 x D < 2 x D < 2 x D < 2 x D
11 12 13 14 32 62
TAN50VS VS 63 71 72 73 74 81
R25
93

C C C C
2 x P 2 x P 2 x P 2 x P
d 2
a
d 1
l 2
l P
1
Ø d 1 P d 1 l 1 l 2 d 2 a ID ID ID ID
UNC TPI mm mm mm mm mm
1 64 1.85 40 5.6 2.5 3 1.45 l 193857 l 193894 l 193931 l 193964
2 56 2.18 45 9 2.8 2.1 3 1.75 l 193858 l 193895 l 193932 l 193965
3 48 2.51 50 10 2.8 2.1 3 2 l 193859 l 193896 l 193933 l 193966

d 2 a
d 1
l 2
l P
1
Ø d 1 P d 1 l 1 l 2 d 2 a ID ID ID ID
UNC(J) TPI mm mm mm mm mm
1 64 1.85 40 5.6 2.5 3 1.45 l 193860 l 193897 l 193934 l 193967
2 56 2.18 45 9 2.8 2.1 3 1.75 l 193861 l 193898 l 193935 l 193968
3 48 2.51 50 10 2.8 2.1 3 2 l 193862 l 193899 l 193936 l 193969

344 dcswiss.com
