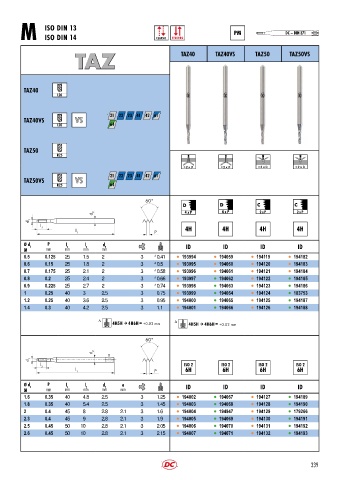

Page 342 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 13
M ISO DIN 14 CLASSIC SYNCHRO PM DC – DIN 371

TAZ TAZ40 TAZ40VS TAZ50 TAZ50VS

TAZ40
L20

TAZ40VS VS 21 22 23 41 42 61
L20

TAZ50
R25
< 2 x D < 2 x D < 2 x D < 2 x D

TAZ50VS VS 21 22 23 41 42 61
R25

D D C C
d 2 4 x P 4 x P 2 x P 2 x P
d 1
l
2 4H 4H 4H 4H
l
1 P
Ø d 1 P l 1 l 2 d 2 ID ID ID ID
M mm mm mm mm
0.5 0.125 25 1.5 2 3 ∆ 0.41 l 193994 l 194059 l 194119 l 194182
0.6 0.15 25 1.8 2 3 ∆ 0.5 l 193995 l 194060 l 194120 l 194183
0.7 0.175 25 2.1 2 3 ∆ 0.58 l 193996 l 194061 l 194121 l 194184
0.8 0.2 25 2.4 2 3 ∆ 0.66 l 193997 l 194062 l 194122 l 194185
0.9 0.225 25 2.7 2 3 ∆ 0.74 l 193998 l 194063 l 194123 l 194186
1 0.25 40 3 2.5 3 0.75 l 193999 l 194064 l 194124 l 183753
1.2 0.25 40 3.6 2.5 3 0.95 l 194000 l 194065 l 194125 l 194187
1.4 0.3 40 4.2 2.5 3 1.1 l 194001 l 194066 l 194126 l 194188

∆ ∆
4H5H 4H6H = +0.02 mm 4H5H 4H6H = +0.02 mm

d 2 a
d 1
l 2
l P
1

Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
M mm mm mm mm mm
1.6 0.35 40 4.8 2.5 3 1.25 l 194002 l 194067 l 194127 l 194189
1.8 0.35 40 5.4 2.5 3 1.45 l 194003 l 194068 l 194128 l 194190
2 0.4 45 8 2.8 2.1 3 1.6 l 194004 l 194947 l 194129 l 179266
2.3 0.4 45 9 2.8 2.1 3 1.9 l 194005 l 194069 l 194130 l 194191
2.5 0.45 50 10 2.8 2.1 3 2.05 l 194006 l 194070 l 194131 l 194192
2.6 0.45 50 10 2.8 2.1 3 2.15 l 194007 l 194071 l 194132 l 194193

339
