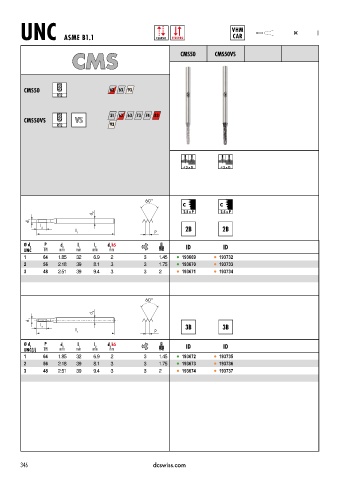

Page 349 - DC_SWISS(Catalogue_TM_ES-EN)

VHM DC
UNC ASME B1.1 CLASSIC SYNCHRO CAR

CMS CMS50 CMS50VS

CMS50 62 63 93
R12

CMS50VS VS 31 62 63 73 74 83
R12 93

< 3 x D < 3 x D

C C
2.5 x P 2.5 x P
d 2
d 1
l
2
l
1 P
Ø d 1 P d 1 l 1 l 2 d h5 ID ID
2
UNC TPI mm mm mm mm
1 64 1.85 32 6.9 2 3 1.45 l 193669 l 193732
2 56 2.18 39 8.1 3 3 1.75 l 193670 l 193733
3 48 2.51 39 9.4 3 3 2 l 193671 l 193734

d 2
d 1
l
2
l 1 P
Ø d 1 P d 1 l 1 l 2 d h5 ID ID
2
UNC(J) TPI mm mm mm mm
1 64 1.85 32 6.9 2 3 1.45 l 193672 l 193735
2 56 2.18 39 8.1 3 3 1.75 l 193673 l 193736
3 48 2.51 39 9.4 3 3 2 l 193674 l 193737

346 dcswiss.com
