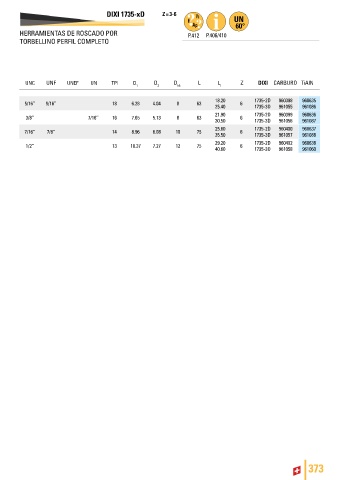

Page 375 - DC_SWISS(Catalogue_TM_ES-EN)

DIXI 1735-xD Z = 3-6

HERRAMIENTAS DE ROSCADO POR P.412 P.406/410
TORBELLINO PERFIL COMPLETO

UNC UNF UNEF UN TPI D 1 D 2 D h5 L L 1 Z DIXI CARBURO TiAlN

18.20 1735-2D 960398 960635
5/16’’ 9/16’’ 18 6.28 4.04 8 63 6
25.40 1735-3D 961055 961086
21.90 1735-2D 960399 960636
3/8’’ 7/16’’ 16 7.65 5.13 8 63 6
30.50 1735-3D 961056 961087
25.60 1735-2D 960400 960637
7/16’’ 7/8’’ 14 8.96 6.08 10 75 6
35.50 1735-3D 961057 961088
29.20 1735-2D 960402 960638
1/2’’ 13 10.37 7.27 12 75 6
40.60 1735-3D 961058 961060
