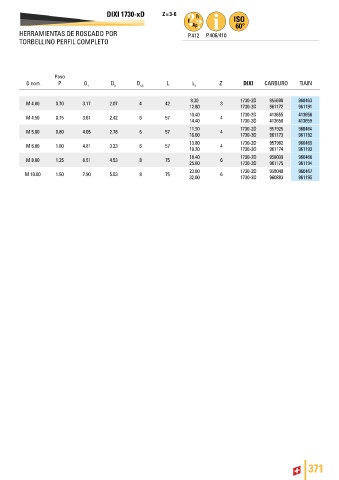

DIXI 1730-xD Z = 3-6

HERRAMIENTAS DE ROSCADO POR P.412 P.406/410
TORBELLINO PERFIL COMPLETO

Paso
D nom. P D D D L L Z DIXI CARBURO TiAlN
1 2 h5 1

9.30 1730-2D 955699 960463
M 4.00 0.70 3.17 2.07 4 42 3
12.80 1730-3D 961172 961191
10.40 1730-2D 413655 413656
M 4.50 0.75 3.61 2.42 6 57 4
14.40 1730-3D 413658 413659
11.50 1730-2D 957925 960464
M 5.00 0.80 4.05 2.78 6 57 4
16.00 1730-3D 961173 961192
13.80 1730-2D 957982 960465
M 6.00 1.00 4.81 3.23 6 57 4
19.20 1730-3D 961174 961193
18.40 1730-2D 958039 960466
M 8.00 1.25 6.51 4.53 8 75 6
25.60 1730-3D 961175 961194
23.00 1730-2D 958040 960467
M 10.00 1.50 7.90 5.53 8 75 6
32.00 1730-3D 960883 961195
