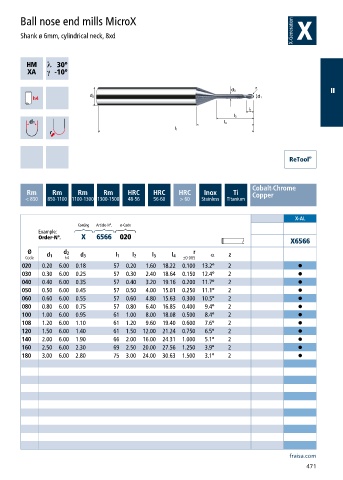

Ball nose end mills MicroX

Shank ø 6mm, cylindrical neck, 8xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6566 020
X6566
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
020 0.20 6.00 0.18 57 0.20 1.60 18.22 0.100 13.2° 2 •
030 0.30 6.00 0.25 57 0.30 2.40 18.64 0.150 12.4° 2 •
040 0.40 6.00 0.35 57 0.40 3.20 19.16 0.200 11.7° 2 •
050 0.50 6.00 0.45 57 0.50 4.00 15.01 0.250 11.1° 2 •
060 0.60 6.00 0.55 57 0.60 4.80 15.63 0.300 10.5° 2 •
080 0.80 6.00 0.75 57 0.80 6.40 16.85 0.400 9.4° 2 •
100 1.00 6.00 0.95 61 1.00 8.00 18.08 0.500 8.4° 2 •
108 1.20 6.00 1.10 61 1.20 9.60 19.40 0.600 7.6° 2 •
120 1.50 6.00 1.40 61 1.50 12.00 21.24 0.750 6.5° 2 •
140 2.00 6.00 1.90 66 2.00 16.00 24.31 1.000 5.1° 2 •
160 2.50 6.00 2.30 69 2.50 20.00 27.56 1.250 3.9° 2 •
180 3.00 6.00 2.80 75 3.00 24.00 30.63 1.500 3.1° 2 •
