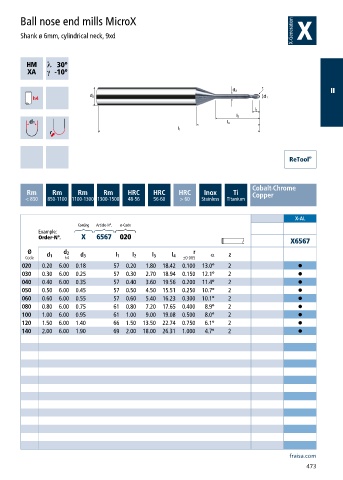

Ball nose end mills MicroX

Shank ø 6mm, cylindrical neck, 9xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6567 020
X6567
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
020 0.20 6.00 0.18 57 0.20 1.80 18.42 0.100 13.0° 2 •
030 0.30 6.00 0.25 57 0.30 2.70 18.94 0.150 12.1° 2 •
040 0.40 6.00 0.35 57 0.40 3.60 19.56 0.200 11.4° 2 •
050 0.50 6.00 0.45 57 0.50 4.50 15.51 0.250 10.7° 2 •
060 0.60 6.00 0.55 57 0.60 5.40 16.23 0.300 10.1° 2 •
080 0.80 6.00 0.75 61 0.80 7.20 17.65 0.400 8.9° 2 •
100 1.00 6.00 0.95 61 1.00 9.00 19.08 0.500 8.0° 2 •
120 1.50 6.00 1.40 66 1.50 13.50 22.74 0.750 6.1° 2 •
140 2.00 6.00 1.90 69 2.00 18.00 26.31 1.000 4.7° 2 •
