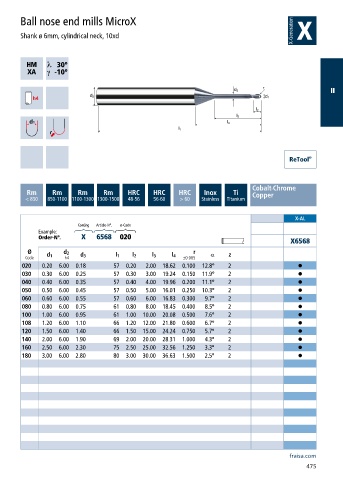

Ball nose end mills MicroX

Shank ø 6mm, cylindrical neck, 10xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6568 020
X6568
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
020 0.20 6.00 0.18 57 0.20 2.00 18.62 0.100 12.8° 2 •
030 0.30 6.00 0.25 57 0.30 3.00 19.24 0.150 11.9° 2 •
040 0.40 6.00 0.35 57 0.40 4.00 19.96 0.200 11.1° 2 •
050 0.50 6.00 0.45 57 0.50 5.00 16.01 0.250 10.3° 2 •
060 0.60 6.00 0.55 57 0.60 6.00 16.83 0.300 9.7° 2 •
080 0.80 6.00 0.75 61 0.80 8.00 18.45 0.400 8.5° 2 •
100 1.00 6.00 0.95 61 1.00 10.00 20.08 0.500 7.6° 2 •
108 1.20 6.00 1.10 66 1.20 12.00 21.80 0.600 6.7° 2 •
120 1.50 6.00 1.40 66 1.50 15.00 24.24 0.750 5.7° 2 •
140 2.00 6.00 1.90 69 2.00 20.00 28.31 1.000 4.3° 2 •
160 2.50 6.00 2.30 75 2.50 25.00 32.56 1.250 3.3° 2 •
180 3.00 6.00 2.80 80 3.00 30.00 36.63 1.500 2.5° 2 •

fraisa.com
475
