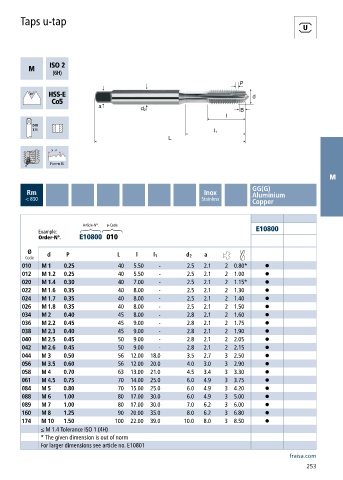

Taps u-tap

M
GG(G)
Rm Inox Aluminium
< 850 Stainless Copper

Article-N°. ø-Code
Example: E10800
Order-N°. E10800 010
Ø
Code d P L l l 1 d 2 a
010 M 1 0.25 40 5.50 - 2.5 2.1 2 0.80* •
012 M 1.2 0.25 40 5.50 - 2.5 2.1 2 1.00 •
020 M 1.4 0.30 40 7.00 - 2.5 2.1 2 1.15* •
022 M 1.6 0.35 40 8.00 - 2.5 2.1 2 1.30 •
024 M 1.7 0.35 40 8.00 - 2.5 2.1 2 1.40 •
026 M 1.8 0.35 40 8.00 - 2.5 2.1 2 1.50 •
034 M 2 0.40 45 8.00 - 2.8 2.1 2 1.60 •
036 M 2.2 0.45 45 9.00 - 2.8 2.1 2 1.75 •
038 M 2.3 0.40 45 9.00 - 2.8 2.1 2 1.90 •
040 M 2.5 0.45 50 9.00 - 2.8 2.1 2 2.05 •
042 M 2.6 0.45 50 9.00 - 2.8 2.1 2 2.15 •
044 M 3 0.50 56 12.00 18.0 3.5 2.7 3 2.50 •
056 M 3.5 0.60 56 12.00 20.0 4.0 3.0 3 2.90 •
058 M 4 0.70 63 13.00 21.0 4.5 3.4 3 3.30 •
061 M 4.5 0.75 70 14.00 25.0 6.0 4.9 3 3.75 •
084 M 5 0.80 70 15.00 25.0 6.0 4.9 3 4.20 •
088 M 6 1.00 80 17.00 30.0 6.0 4.9 3 5.00 •
089 M 7 1.00 80 17.00 30.0 7.0 6.2 3 6.00 •
160 M 8 1.25 90 20.00 35.0 8.0 6.2 3 6.80 •
174 M 10 1.50 100 22.00 39.0 10.0 8.0 3 8.50 •
≤ M 1.4 Tolerance ISO 1 (4H)
* The given dimension is out of norm
For larger dimensions see article no. E10801
