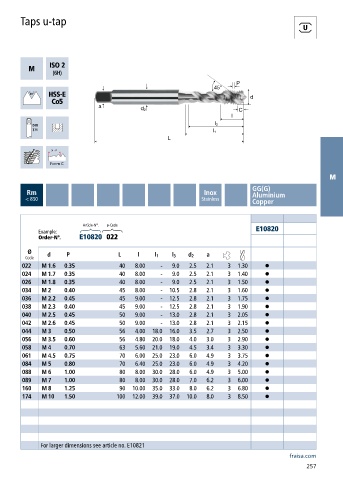

Page 259 - Carbide drills I Thread cutting tools 2023

Taps u-tap

M
GG(G)
Rm Inox Aluminium
< 850 Stainless Copper

Article-N°. ø-Code
Example: E10820
Order-N°. E10820 022
Ø
Code d P L l l 1 l 3 d 2 a
022 M 1.6 0.35 40 8.00 - 9.0 2.5 2.1 3 1.30 •
024 M 1.7 0.35 40 8.00 - 9.0 2.5 2.1 3 1.40 •
026 M 1.8 0.35 40 8.00 - 9.0 2.5 2.1 3 1.50 •
034 M 2 0.40 45 8.00 - 10.5 2.8 2.1 3 1.60 •
036 M 2.2 0.45 45 9.00 - 12.5 2.8 2.1 3 1.75 •
038 M 2.3 0.40 45 9.00 - 12.5 2.8 2.1 3 1.90 •
040 M 2.5 0.45 50 9.00 - 13.0 2.8 2.1 3 2.05 •
042 M 2.6 0.45 50 9.00 - 13.0 2.8 2.1 3 2.15 •
044 M 3 0.50 56 4.00 18.0 16.0 3.5 2.7 3 2.50 •
056 M 3.5 0.60 56 4.80 20.0 18.0 4.0 3.0 3 2.90 •
058 M 4 0.70 63 5.60 21.0 19.0 4.5 3.4 3 3.30 •
061 M 4.5 0.75 70 6.00 25.0 23.0 6.0 4.9 3 3.75 •
084 M 5 0.80 70 6.40 25.0 23.0 6.0 4.9 3 4.20 •
088 M 6 1.00 80 8.00 30.0 28.0 6.0 4.9 3 5.00 •
089 M 7 1.00 80 8.00 30.0 28.0 7.0 6.2 3 6.00 •
160 M 8 1.25 90 10.00 35.0 33.0 8.0 6.2 3 6.80 •
174 M 10 1.50 100 12.00 39.0 37.0 10.0 8.0 3 8.50 •

For larger dimensions see article no. E10821
fraisa.com
257
