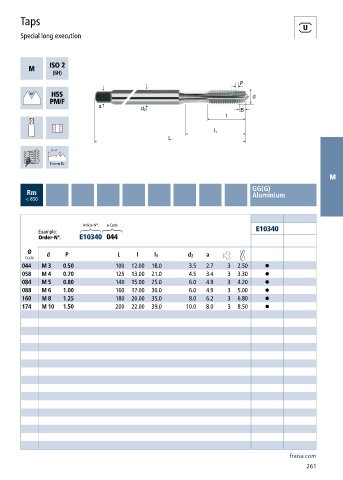

Taps
Special long execution
M
GG(G)
Rm Aluminium
< 850
Article-N°. ø-Code
Example: E10340
Order-N°. E10340 044
Ø
Code d P L l l 1 d 2 a
044 M 3 0.50 100 12.00 18.0 3.5 2.7 3 2.50 •
058 M 4 0.70 125 13.00 21.0 4.5 3.4 3 3.30 •
084 M 5 0.80 140 15.00 25.0 6.0 4.9 3 4.20 •
088 M 6 1.00 160 17.00 30.0 6.0 4.9 3 5.00 •
160 M 8 1.25 180 20.00 35.0 8.0 6.2 3 6.80 •
174 M 10 1.50 200 22.00 39.0 10.0 8.0 3 8.50 •
