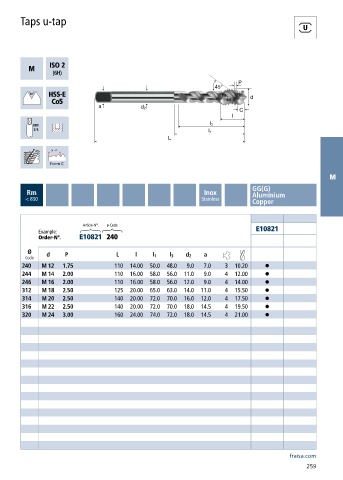

Page 261 - Carbide drills I Thread cutting tools 2023
P. 261
Taps u-tap
M
GG(G)
Rm Inox Aluminium
< 850 Stainless Copper
Article-N°. ø-Code
Example: E10821
Order-N°. E10821 240
Ø
Code d P L l l 1 l 3 d 2 a
240 M 12 1.75 110 14.00 50.0 48.0 9.0 7.0 3 10.20 •
244 M 14 2.00 110 16.00 58.0 56.0 11.0 9.0 4 12.00 •
246 M 16 2.00 110 16.00 58.0 56.0 12.0 9.0 4 14.00 •
312 M 18 2.50 125 20.00 65.0 63.0 14.0 11.0 4 15.50 •
314 M 20 2.50 140 20.00 72.0 70.0 16.0 12.0 4 17.50 •
316 M 22 2.50 140 20.00 72.0 70.0 18.0 14.5 4 19.50 •
320 M 24 3.00 160 24.00 74.0 72.0 18.0 14.5 4 21.00 •
fraisa.com
259
