Page 73 - Carbide drills I Thread cutting tools 2023

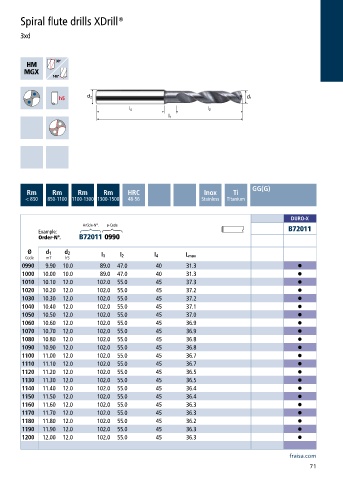

Spiral flute drills XDrill®

3xd

GG(G)
Rm Rm Rm Rm HRC Inox Ti
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium

DURO-X
Article-N°. ø-Code
Example: B72011
Order-N°. B72011 0990
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0990 9.90 10.0 89.0 47.0 40 31.3 •
1000 10.00 10.0 89.0 47.0 40 31.3 •
1010 10.10 12.0 102.0 55.0 45 37.3 •
1020 10.20 12.0 102.0 55.0 45 37.2 •
1030 10.30 12.0 102.0 55.0 45 37.2 •
1040 10.40 12.0 102.0 55.0 45 37.1 •
1050 10.50 12.0 102.0 55.0 45 37.0 •
1060 10.60 12.0 102.0 55.0 45 36.9 •
1070 10.70 12.0 102.0 55.0 45 36.9 •
1080 10.80 12.0 102.0 55.0 45 36.8 •
1090 10.90 12.0 102.0 55.0 45 36.8 •
1100 11.00 12.0 102.0 55.0 45 36.7 •
1110 11.10 12.0 102.0 55.0 45 36.7 •
1120 11.20 12.0 102.0 55.0 45 36.5 •
1130 11.30 12.0 102.0 55.0 45 36.5 •
1140 11.40 12.0 102.0 55.0 45 36.4 •
1150 11.50 12.0 102.0 55.0 45 36.4 •
1160 11.60 12.0 102.0 55.0 45 36.3 •
1170 11.70 12.0 102.0 55.0 45 36.3 •
1180 11.80 12.0 102.0 55.0 45 36.2 •
1190 11.90 12.0 102.0 55.0 45 36.3 •
1200 12.00 12.0 102.0 55.0 45 36.3 •

fraisa.com
71
