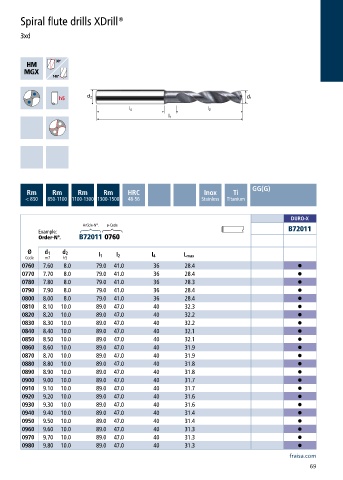

P. 71
Spiral flute drills XDrill®
3xd
GG(G)
Rm Rm Rm Rm HRC Inox Ti
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
DURO-X
Article-N°. ø-Code
Example: B72011
Order-N°. B72011 0760
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0760 7.60 8.0 79.0 41.0 36 28.4 •
0770 7.70 8.0 79.0 41.0 36 28.4 •
0780 7.80 8.0 79.0 41.0 36 28.3 •
0790 7.90 8.0 79.0 41.0 36 28.4 •
0800 8.00 8.0 79.0 41.0 36 28.4 •
0810 8.10 10.0 89.0 47.0 40 32.3 •
0820 8.20 10.0 89.0 47.0 40 32.2 •
0830 8.30 10.0 89.0 47.0 40 32.2 •
0840 8.40 10.0 89.0 47.0 40 32.1 •
0850 8.50 10.0 89.0 47.0 40 32.1 •
0860 8.60 10.0 89.0 47.0 40 31.9 •
0870 8.70 10.0 89.0 47.0 40 31.9 •
0880 8.80 10.0 89.0 47.0 40 31.8 •
0890 8.90 10.0 89.0 47.0 40 31.8 •
0900 9.00 10.0 89.0 47.0 40 31.7 •
0910 9.10 10.0 89.0 47.0 40 31.7 •
0920 9.20 10.0 89.0 47.0 40 31.6 •
0930 9.30 10.0 89.0 47.0 40 31.6 •
0940 9.40 10.0 89.0 47.0 40 31.4 •
0950 9.50 10.0 89.0 47.0 40 31.4 •
0960 9.60 10.0 89.0 47.0 40 31.3 •
0970 9.70 10.0 89.0 47.0 40 31.3 •
0980 9.80 10.0 89.0 47.0 40 31.3 •
fraisa.com
69
