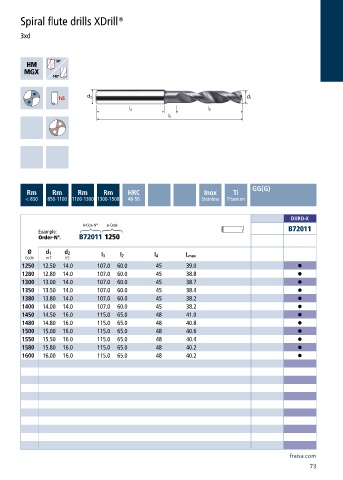

Spiral flute drills XDrill®
3xd
GG(G)
Rm Rm Rm Rm HRC Inox Ti
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
DURO-X
Article-N°. ø-Code
Example: B72011
Order-N°. B72011 1250
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
1250 12.50 14.0 107.0 60.0 45 39.0 •
1280 12.80 14.0 107.0 60.0 45 38.8 •
1300 13.00 14.0 107.0 60.0 45 38.7 •
1350 13.50 14.0 107.0 60.0 45 38.4 •
1380 13.80 14.0 107.0 60.0 45 38.2 •
1400 14.00 14.0 107.0 60.0 45 38.2 •
1450 14.50 16.0 115.0 65.0 48 41.0 •
1480 14.80 16.0 115.0 65.0 48 40.8 •
1500 15.00 16.0 115.0 65.0 48 40.6 •
1550 15.50 16.0 115.0 65.0 48 40.4 •
1580 15.80 16.0 115.0 65.0 48 40.2 •
1600 16.00 16.0 115.0 65.0 48 40.2 •
