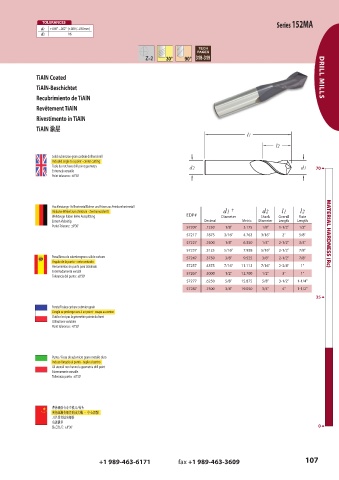

TOLERANCES Series 152MA
d1 +.000" –.002" (+.000 /–.050mm)
d2 h6

Z2 318-319
=

TiAlN Coated DRILL MILLS
TiAlN-Beschichtet
Recubrimiento de TiAlN

Revêtement TiAlN
Rivestimento in TiAlN

TiAlN 涂层
涂层

Solid submicron grain carbide drill/end mill
Included angle to a point - center cutting
Tools do not have drill point geometry 70
Extremely versatile 6
Point tolerance: ±0°30'

Hochleistungs- VollhartmetallBohrer und fräser aus Feinkornhartmetall
Inklusive Winkel zum Zentrum - Zentrumsschnitt d1 † d2 l1 l2
Werkzeuge haben keine Ausspitzung EDP# Diameter Shank Overall Flute
Extrem Vielseitig Decimal Metric Diameter Length Length
Punkt-Toleranz: ±0°30' 57207 .1250 1/8" 3.175 1/8" 1-1/2" 1/2"
57217 .1875 3/16" 4.763 3/16" 2" 5/8" MATERIAL HARDNESS (Rc)
57227 .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
57237 .3125 5/16" 7.938 5/16" 2-1/2" 7/8"
Fresa/Broca de submicrograno sólido carburo 57247 .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
Ángulo de la punta - corte centrado
Herramientas sin punta para taladrado 57257 .4375 7/16" 11.113 7/16" 2-3/4" 1"
Extremadamente versátil 57267 .5000 1/2" 12.700 1/2" 3" 1"
Tolerancia del punta: ±0°30'
57277 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
57287 .7500 3/4" 19.050 3/4" 4" 1-1/2"
35 6

Forets/Fraises carbure submicrograin
L’angle se prolonge vers à un point - coupe au centre
Outils n'ont pas la géométrie pointe du foret
Utilisations variables
Point tolerance: ±0°30'

Punte / Fresa de sub-micro grano metallo duro
Incluso l’angolo al punto - taglio al centro
Gli utensili non hanno la geometria drill point
Estremamente varsatile
Tolleranza punto: ±0°30'

整体硬质合金立铣刀/钻头
夹角逐渐变细并形成尖端 - 中心切削
刀具没有钻尖部份
功能极多
钻点允差: ±0°30' 0 6
