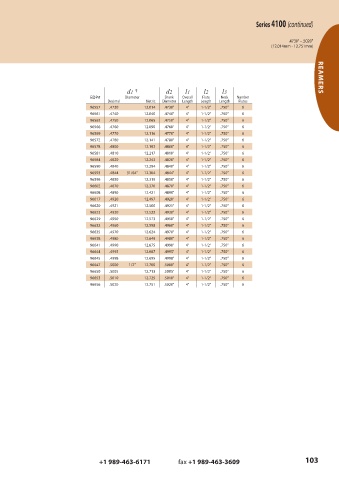

Page 103 - GARR_TOOL(CATALOG_INT)

Series 4100 (continued)

.4730" - .5020"
(12.014mm - 12.751mm)

d1 † d2 l1 l2 l3 REAMERS
EDP# Diameter Shank Overall Flute Neck Number
Decimal Metric Diameter Length Length Length Flutes
96557 .4730 12.014 .4730" 4" 1-1/2" .750" 6
96561 .4740 12.040 .4740" 4" 1-1/2" .750" 6
96563 .4750 12.065 .4750" 4" 1-1/2" .750" 6
96566 .4760 12.090 .4760" 4" 1-1/2" .750" 6
96569 .4770 12.116 .4770" 4" 1-1/2" .750" 6
96572 .4780 12.141 .4780" 4" 1-1/2" .750" 6
96578 .4800 12.192 .4800" 4" 1-1/2" .750" 6
96581 .4810 12.217 .4810" 4" 1-1/2" .750" 6
96584 .4820 12.243 .4820" 4" 1-1/2" .750" 6
96590 .4840 12.294 .4840" 4" 1-1/2" .750" 6
96593 .4844 31/64" 12.304 .4844" 4" 1-1/2" .750" 6
96596 .4850 12.319 .4850" 4" 1-1/2" .750" 6
96602 .4870 12.370 .4870" 4" 1-1/2" .750" 6
96608 .4890 12.421 .4890" 4" 1-1/2" .750" 6
96617 .4920 12.497 .4920" 4" 1-1/2" .750" 6
96620 .4921 12.500 .4921" 4" 1-1/2" .750" 6
96623 .4930 12.522 .4930" 4" 1-1/2" .750" 6
96629 .4950 12.573 .4950" 4" 1-1/2" .750" 6
96632 .4960 12.598 .4960" 4" 1-1/2" .750" 6
96635 .4970 12.624 .4970" 4" 1-1/2" .750" 6
96638 .4980 12.649 .4980" 4" 1-1/2" .750" 6
96641 .4990 12.675 .4990" 4" 1-1/2" .750" 6
96644 .4995 12.687 .4995" 4" 1-1/2" .750" 6
96645 .4998 12.695 .4998" 4" 1-1/2" .750" 6
96647 .5000 1/2" 12.700 .5000" 4" 1-1/2" .750" 6
96650 .5005 12.713 .5005" 4" 1-1/2" .750" 6
96653 .5010 12.725 .5010" 4" 1-1/2" .750" 6
96656 .5020 12.751 .5020" 4" 1-1/2" .750" 6
