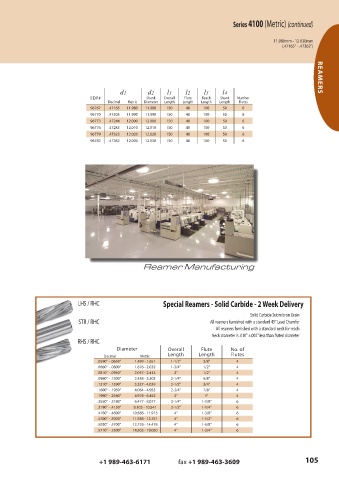

P. 105

Series 4100 (Metric) (continued)


                                                                                                 11.980mm - 12.030mm
                                                                                                    (.47165" - .47362")








                                           d1        d2     l1    l2     l3    l4                                REAMERS
                                 EDP#               Shank  Overall  Flute  Reach  Shank  Number
                                       Decimal  Metric  Diameter  Length  Length  Length  Length  Flutes
                                 96767  .47165  11.980  11.980  150  40  100   50     6
                                 96770  .47205  11.990  11.990  150  40  100   50     6
                                 96773  .47244  12.000  12.000  150  40  100   50     6
                                 96776  .47283  12.010  12.010  150  40  100   50     6
                                 96779  .47323  12.020  12.020  150  40  100   50     6
                                 96782  .47362  12.030  12.030  150  40  100   50     6


























                                                   Reamer Manufacturing






                            LHS / RHC                     Special Reamers - Solid Carbide - 2 Week Delivery
                                                                                         Solid Carbide Submicron Grain
                             STR / RHC                                     All reamers furnished with a standard 45° Lead Chamfer
                                                                             All reamers furnished with a standard neck for reach
                                                                           Neck diameter is .010" ±.002" less than fluted diameter
                            RHS / RHC
                                          Diameter          Overall     Flute     No. of
                                       Decimal    Metric    Length     Length     Flutes
                                   .0590" - .0650"  1.499 - 1.651  1-1/2"  3/8"     4
                                   .0660" - .0800"  1.676 - 2.032  1-3/4"  1/2"     4
                                   .0810" - .0950"  2.057 - 2.413  2"   1/2"        4
                                   .0960" - .1300"  2.438 - 3.302  2-1/4"  5/8"     4
                                   .1310" - .1590"  3.327 - 4.039  2-1/2"  3/4"     4
                                   .1600" - .1950"  4.064 - 4.953  2-3/4"  7/8"     4
                                   .1960" - .2540"  4.978 - 6.452  3"    1"         4
                                   .2550" - .3180"  6.477 - 8.077  3-1/4"  1-1/8"   6
                                   .3190" - .4150"  8.103 - 10.541  3-1/2"  1-1/4"  6
                                   .4160" - .4690"  10.566 - 11.913  4"  1-3/8"     6
                                   .4700" - .5020"  11.938 - 12.751  4"  1-1/2"     6
                                   .5030" - .5700"  12.776 - 14.478  4"  1-5/8"     6
                                   .5710" - .7500"  14.503 - 19.050  4"  1-3/4"     6




                                    +1 989-463-6171                    fax +1 989-463-3609                  105
