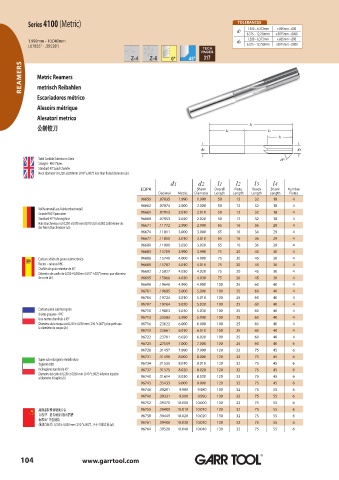

Page 104 - GARR_TOOL(CATALOG_INT)

Series 4100 (Metric) TOLERANCES
d1 1.500 – 6.372mm +.005mm –.000
6.375 – 12.750mm +.0075mm –.0000
1.990mm - 10.040mm d2 1.500 – 6.372mm +.005mm –.000
(.07835" - .39528") 6.375 – 12.750mm +.0075mm –.0000
0° 45° 317
REAMERS Metric Reamers

metrisch Reibahlen
Escariadores métrico

Alesoirs métrique
Alesatori metrico
公制铰刀
公制铰刀

Solid Carbide Submicron Grain
Straight - RHC Flutes
Standard 45° Lead Chamfer
Neck diameter is 0,250 ±0,050mm (.010" ±.002") less than fluted diameter (d1)

d1 d2 l1 l2 l3 l4
EDP# Shank Overall Flute Reach Shank Number
Decimal Metric Diameter Length Length Length Length Flutes
96659 .07835 1.990 1.990 50 12 32 18 4
96662 .07874 2.000 2.000 50 12 32 18 4
Vollhartmetall aus Feinkornhartmetall
Gerade RHC-Spannuten 96665 .07913 2.010 2.010 50 12 32 18 4
Standard 45° Führungsfase 96668 .07953 2.020 2.020 50 12 32 18 4
Hals-Durchmesser ist 0,250 ±0,050 mm (0,010 Zoll ±0,002 Zoll) kleiner als 96671 .11772 2.990 2.990 65 16 36 29 4
der Nenn-Durchmesser (d1)
96674 .11811 3.000 3.000 65 16 36 29 4
96677 .11850 3.010 3.010 65 16 36 29 4
96680 .11890 3.020 3.020 65 16 36 29 4
96683 .15709 3.990 3.990 75 20 45 30 4
Carburo sólido de grano submicrónico 96686 .15748 4.000 4.000 75 20 45 30 4
Rectos – ranuras RHC 96689 .15787 4.010 4.010 75 20 45 30 4
Chaflán de guía estándar de 45°
Diámetro de cuello de 0,250 ±0,050mm (.010" ±.002") menor que diámetro 96692 .15827 4.020 4.020 75 20 45 30 4
de corte (d1) 96695 .15866 4.030 4.030 75 20 45 30 4
96698 .19646 4.990 4.990 100 25 60 40 4
96701 .19685 5.000 5.000 100 25 60 40 4
96704 .19724 5.010 5.010 100 25 60 40 4
96707 .19764 5.020 5.020 100 25 60 40 4
Carbure plein submicrograin 96710 .19803 5.030 5.030 100 25 60 40 4
droites goujures - RHC
Une norme chanfrein à 45° 96713 .23583 5.990 5.990 100 25 60 40 4
Diamètre de la nuque est 0,250 ± 0,050 mm (.010 "±.002") plus petit que 96716 .23622 6.000 6.000 100 25 60 40 4
le diamètre de coupe (d1)
96719 .23661 6.010 6.010 100 25 60 40 4
96722 .23701 6.020 6.020 100 25 60 40 4
96725 .27559 7.000 7.000 100 25 60 40 6
96728 .31457 7.990 7.990 120 32 75 45 6
96731 .31496 8.000 8.000 120 32 75 45 6
Super sub-micrograno metallo duro
Taglienti dritti 96734 .31535 8.010 8.010 120 32 75 45 6
Inclinazione standard a 45° 96737 .31575 8.020 8.020 120 32 75 45 6
Diametro del collo di 0,250 ± 0,050 mm (.010 "±.002") inferiore rispetto
al diametro di taglio (d1) 96740 .31614 8.030 8.030 120 32 75 45 6
96743 .35433 9.000 9.000 120 32 75 45 6
96746 .39291 9.980 9.980 130 32 75 55 6
96749 .39331 9.990 9.990 130 32 75 55 6
96752 .39370 10.000 10.000 130 32 75 55 6
超细晶粒整体硬质合金 96755 .39409 10.010 10.010 130 32 75 55 6
直线型—洛氏硬度C级出屑槽 96758 .39449 10.020 10.020 130 32 75 55 6
标准45° 导程倒角
颈部直径为 0,250 ± 0,050 mm (.010 "±.002"),小于刃部直径 (d1) 96761 .39488 10.030 10.030 130 32 75 55 6
96764 .39528 10.040 10.040 130 32 75 55 6

104 www.garrtool.com ®
