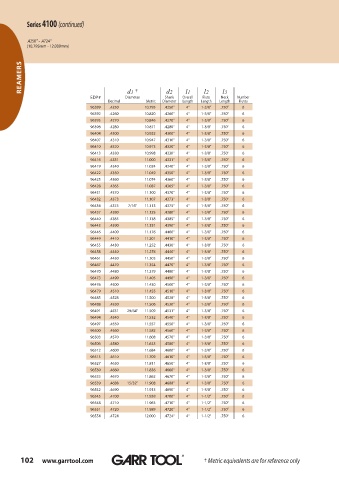

Page 102 - GARR_TOOL(CATALOG_INT)

Series 4100 (continued)

.4250" - .4724"
(10.795mm - 12.000mm)

REAMERS

d1
†
l1
l3
l2
d2
EDP# Diameter Shank Overall Flute Neck Number
Decimal Metric Diameter Length Length Length Flutes
96389 .4250 10.795 .4250" 4" 1-3/8" .750" 6
96392 .4260 10.820 .4260" 4" 1-3/8" .750" 6
96395 .4270 10.846 .4270" 4" 1-3/8" .750" 6
96398 .4280 10.871 .4280" 4" 1-3/8" .750" 6
96404 .4300 10.922 .4300" 4" 1-3/8" .750" 6
96407 .4310 10.947 .4310" 4" 1-3/8" .750" 6
96410 .4320 10.973 .4320" 4" 1-3/8" .750" 6
96413 .4330 10.998 .4330" 4" 1-3/8" .750" 6
96416 .4331 11.000 .4331" 4" 1-3/8" .750" 6
96419 .4340 11.024 .4340" 4" 1-3/8" .750" 6
96422 .4350 11.049 .4350" 4" 1-3/8" .750" 6
96425 .4360 11.074 .4360" 4" 1-3/8" .750" 6
96428 .4365 11.087 .4365" 4" 1-3/8" .750" 6
96431 .4370 11.100 .4370" 4" 1-3/8" .750" 6
96432 .4373 11.107 .4373" 4" 1-3/8" .750" 6
96434 .4375 7/16" 11.113 .4375" 4" 1-3/8" .750" 6
96437 .4380 11.125 .4380" 4" 1-3/8" .750" 6
96440 .4385 11.138 .4385" 4" 1-3/8" .750" 6
96443 .4390 11.151 .4390" 4" 1-3/8" .750" 6
96446 .4400 11.176 .4400" 4" 1-3/8" .750" 6
96449 .4410 11.201 .4410" 4" 1-3/8" .750" 6
96455 .4430 11.252 .4430" 4" 1-3/8" .750" 6
96458 .4440 11.278 .4440" 4" 1-3/8" .750" 6
96461 .4450 11.303 .4450" 4" 1-3/8" .750" 6
96467 .4470 11.354 .4470" 4" 1-3/8" .750" 6
96470 .4480 11.379 .4480" 4" 1-3/8" .750" 6
96473 .4490 11.405 .4490" 4" 1-3/8" .750" 6
96476 .4500 11.430 .4500" 4" 1-3/8" .750" 6
96479 .4510 11.455 .4510" 4" 1-3/8" .750" 6
96485 .4528 11.500 .4528" 4" 1-3/8" .750" 6
96488 .4530 11.506 .4530" 4" 1-3/8" .750" 6
96491 .4531 29/64" 11.509 .4531" 4" 1-3/8" .750" 6
96494 .4540 11.532 .4540" 4" 1-3/8" .750" 6
96497 .4550 11.557 .4550" 4" 1-3/8" .750" 6
96500 .4560 11.582 .4560" 4" 1-3/8" .750" 6
96503 .4570 11.608 .4570" 4" 1-3/8" .750" 6
96506 .4580 11.633 .4580" 4" 1-3/8" .750" 6
96512 .4600 11.684 .4600" 4" 1-3/8" .750" 6
96515 .4610 11.709 .4610" 4" 1-3/8" .750" 6
96527 .4650 11.811 .4650" 4" 1-3/8" .750" 6
96530 .4660 11.836 .4660" 4" 1-3/8" .750" 6
96533 .4670 11.862 .4670" 4" 1-3/8" .750" 6
96539 .4688 15/32" 11.908 .4688" 4" 1-3/8" .750" 6
96542 .4690 11.913 .4690" 4" 1-3/8" .750" 6
96545 .4700 11.938 .4700" 4" 1-1/2" .750" 6
96548 .4710 11.963 .4710" 4" 1-1/2" .750" 6
96551 .4720 11.989 .4720" 4" 1-1/2" .750" 6
96554 .4724 12.000 .4724" 4" 1-1/2" .750" 6

102 www.garrtool.com ® ® ® † Metric equivalents are for reference only
