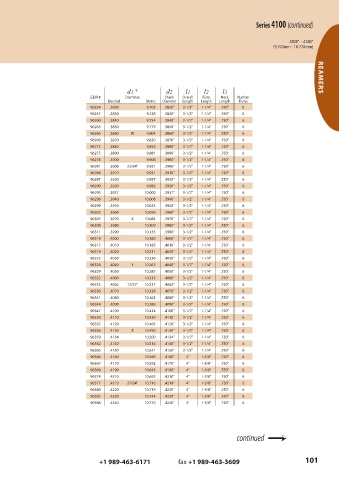

Page 101 - GARR_TOOL(CATALOG_INT)

Series 4100 (continued)

.3820" - .4240"
(9.703mm - 10.770mm)

d1 † d2 l1 l2 l3 REAMERS
EDP# Diameter Shank Overall Flute Neck Number
Decimal Metric Diameter Length Length Length Flutes
96254 .3820 9.703 .3820" 3-1/2" 1-1/4" .750" 6
96257 .3830 9.728 .3830" 3-1/2" 1-1/4" .750" 6
96260 .3840 9.754 .3840" 3-1/2" 1-1/4" .750" 6
96263 .3850 9.779 .3850" 3-1/2" 1-1/4" .750" 6
96266 .3860 W 9.804 .3860" 3-1/2" 1-1/4" .750" 6
96269 .3870 9.830 .3870" 3-1/2" 1-1/4" .750" 6
96272 .3880 9.855 .3880" 3-1/2" 1-1/4" .750" 6
96275 .3890 9.881 .3890" 3-1/2" 1-1/4" .750" 6
96278 .3900 9.906 .3900" 3-1/2" 1-1/4" .750" 6
96281 .3906 25/64" 9.921 .3906" 3-1/2" 1-1/4" .750" 6
96284 .3910 9.931 .3910" 3-1/2" 1-1/4" .750" 6
96287 .3920 9.957 .3920" 3-1/2" 1-1/4" .750" 6
96290 .3930 9.982 .3930" 3-1/2" 1-1/4" .750" 6
96293 .3937 10.000 .3937" 3-1/2" 1-1/4" .750" 6
96296 .3940 10.008 .3940" 3-1/2" 1-1/4" .750" 6
96299 .3950 10.033 .3950" 3-1/2" 1-1/4" .750" 6
96302 .3960 10.058 .3960" 3-1/2" 1-1/4" .750" 6
96305 .3970 X 10.084 .3970" 3-1/2" 1-1/4" .750" 6
96308 .3980 10.109 .3980" 3-1/2" 1-1/4" .750" 6
96311 .3990 10.135 .3990" 3-1/2" 1-1/4" .750" 6
96314 .4000 10.160 .4000" 3-1/2" 1-1/4" .750" 6
96317 .4010 10.185 .4010" 3-1/2" 1-1/4" .750" 6
96319 .4020 10.211 .4020" 3-1/2" 1-1/4" .750" 6
96323 .4030 10.236 .4030" 3-1/2" 1-1/4" .750" 6
96326 .4040 Y 10.262 .4040" 3-1/2" 1-1/4" .750" 6
96329 .4050 10.287 .4050" 3-1/2" 1-1/4" .750" 6
96332 .4060 10.312 .4060" 3-1/2" 1-1/4" .750" 6
96335 .4062 13/32" 10.317 .4062" 3-1/2" 1-1/4" .750" 6
96338 .4070 10.338 .4070" 3-1/2" 1-1/4" .750" 6
96341 .4080 10.363 .4080" 3-1/2" 1-1/4" .750" 6
96344 .4090 10.389 .4090" 3-1/2" 1-1/4" .750" 6
96347 .4100 10.414 .4100" 3-1/2" 1-1/4" .750" 6
96350 .4110 10.439 .4110" 3-1/2" 1-1/4" .750" 6
96353 .4120 10.465 .4120" 3-1/2" 1-1/4" .750" 6
96356 .4130 Z 10.490 .4130" 3-1/2" 1-1/4" .750" 6
96359 .4134 10.500 .4134" 3-1/2" 1-1/4" .750" 6
96362 .4140 10.516 .4140" 3-1/2" 1-1/4" .750" 6
96365 .4150 10.541 .4150" 3-1/2" 1-1/4" .750" 6
96366 .4160 10.566 .4160" 4" 1-3/8" .750" 6
96367 .4170 10.592 .4170" 4" 1-3/8" .750" 6
96369 .4190 10.643 .4190" 4" 1-3/8" .750" 6
96374 .4210 10.693 .4210" 4" 1-3/8" .750" 6
96377 .4219 27/64" 10.716 .4219" 4" 1-3/8" .750" 6
96380 .4220 10.719 .4220" 4" 1-3/8" .750" 6
96383 .4230 10.744 .4230" 4" 1-3/8" .750" 6
96386 .4240 10.770 .4240" 4" 1-3/8" .750" 6

continued ?

+1 989-463-6171 fax +1 989-463-3609 101
