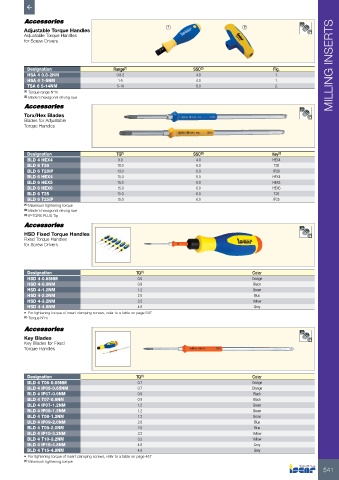

Page 543 - ISCAR(MILLINGCATALOG 38_2021)

Adjustable Torque Handles 1 2
Adjustable Torque Handles
for Screw Drivers

Designation Range (1) SSC (2) Fig. MILLING INSERTS
HSA 4 0.8-2NM 0.8-2 4.0 1.
HSA 4 1-5NM 1-5 4.0 1.
TSA 6 5-14NM 5-14 6.0 2.
(1) Torque range N*m
(2) Blade's hexagonal driving size

Torx/Hex Blades
Blades for Adjustable
Torque Handles

Designation TQ (1) SSC (2) Key (3)
BLD 4 HEX4 8.0 4.0 HEX4
BLD 6 T20 10.0 6.0 T20
BLD 6 T20IP 13.0 6.0 IP20
BLD 6 HEX4 15.0 6.0 HEX4
BLD 6 HEX5 15.0 6.0 HEX5
BLD 6 HEX6 15.0 6.0 HEX6
BLD 6 T25 15.0 6.0 T25
BLD 6 T25IP 15.0 6.0 IP25
(1) Maximum tightening torque
(2) Blade's hexagonal driving size
(3) IP-TORX PLUS Tip

HSD Fixed Torque Handles
Fixed Torque Handles
for Screw Drivers

Designation TQ (1) Color
HSD 4-0.65NM 0.6 Orange
HSD 4-0.9NM 0.9 Black
HSD 4-1.2NM 1.2 Green
HSD 4-2.0NM 2.0 Blue
HSD 4-3.2NM 3.2 Yellow
HSD 4-4.8NM 4.8 Grey
• For tightening torque of insert clamping screws, refer to a table on page 547
(1) Torque N*m

Key Blades
Key Blades for Fixed
Torque Handles

Designation TQ (1) Color
BLD 4 T06-0.65NM 0.7 Orange
BLD 4 IP06-0.65NM 0.7 Orange
BLD 4 IP07-0.9NM 0.9 Black
BLD 4 T07-0.9NM 0.9 Black
BLD 4 IP07-1.2NM 1.2 Green
BLD 4 IP08-1.2NM 1.2 Green
BLD 4 T08-1.2NM 1.2 Green
BLD 4 IP09-2.0NM 2.0 Blue
BLD 4 T09-2.0NM 2.0 Blue
BLD 4 IP10-3.2NM 3.2 Yellow
BLD 4 T10-3.2NM 3.2 Yellow
BLD 4 IP15-4.8NM 4.8 Grey
BLD 4 T15-4.8NM 4.8 Grey
• For tightening torque of insert clamping screws, refer to a table on page 457
(1) Maximum tightening torque
541
