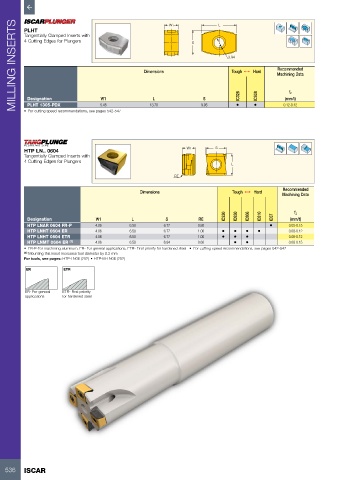

MILLING INSERTS PLHT Dimensions W1 S L 3.94 Recommended

Tangentially Clamped Inserts with
4 Cutting Edges for Plungers

Tough 1 Hard
Machining Data

fz
L
Designation
W1
S
(mm/t)
PLHT 1305-PDX
5.45
• For cutting speed recommendations, see pages 542-547 13.70 9.95 • IC328 • IC908 0.12-0.12

HTP LN.. 0604 W1 S
Tangentially Clamped Inserts with
4 Cutting Edges for Plungers
L
RE

Recommended
Dimensions Tough 1 Hard
Machining Data

IC330 IC830 IC808 IC810 fz
Designation W1 L S RE IC07 (mm/t)
HTP LNAR 0604 FR-P 4.06 6.50 6.77 0.80 • 0.05-0.15
HTP LNHT 0604 ER 4.06 6.50 6.77 1.00 • • • • 0.08-0.12
HTP LNHT 0604 ETR 4.06 6.50 6.77 1.00 • • • 0.08-0.12
HTP LNMT 0604 ER (1) 4.06 6.50 6.84 0.60 • • 0.08-0.15
• FR-P-For machining aluminum, ER- For general applications, ETR- First priority for hardened steel • For cutting speed recommendations, see pages 542-547
(1) Mounting this insert increases tool diameter by 0.2 mm
For tools, see pages: HTP-LN06 (252) • HTP-M-LN06 (252)

ER ETR

ER- For general ETR- First priority
applications for hardened steel

536 ISCAR
