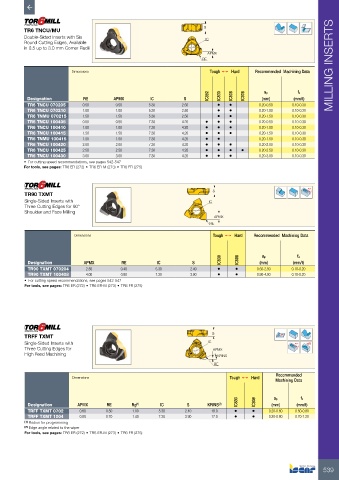

Page 541 - ISCAR(MILLINGCATALOG 38_2021)

TR6 TNCU/MU S
Double-Sided Inserts with Six IC
Round Cutting Edges, Available
in 0.5 up to 3.0 mm Corner Radii
APMX
RE

Dimensions Tough 1 Hard Recommended Machining Data MILLING INSERTS

IC882 IC830 IC808 IC908 ap fz
Designation RE APMX IC S (mm) (mm/t)
TR6 TNCU 070205 0.50 0.50 5.30 2.50 • • 0.20-0.50 0.10-0.30
TR6 TNCU 070210 1.00 1.00 5.30 2.50 • • 0.20-1.00 0.10-0.30
TR6 TNMU 070215 1.50 1.50 5.30 2.50 • • 0.20-1.50 0.10-0.30
TR6 TNCU 100405 0.50 0.50 7.30 4.20 • • • 0.20-0.50 0.10-0.30
TR6 TNCU 100410 1.00 1.00 7.30 4.20 • • • 0.20-1.00 0.10-0.30
TR6 TNCU 100415 1.50 1.50 7.30 4.20 • • • 0.20-1.50 0.10-0.30
TR6 TNMU 100415 1.50 1.50 7.30 4.20 • • 0.20-1.50 0.10-0.30
TR6 TNCU 100420 2.00 2.00 7.30 4.20 • • • 0.20-2.00 0.10-0.30
TR6 TNCU 100425 2.50 2.50 7.30 4.20 • • • • 0.20-2.50 0.10-0.30
TR6 TNCU 100430 3.00 3.00 7.30 4.20 • • • 0.20-3.00 0.10-0.30
• For cutting speed recommendations, see pages 542-547
For tools, see pages: TR6 ER (272) • TR6 ER-M (273) • TR6 FR (275)

Rd°
TR90 TXMT S
Single-Sided Inserts with IC
Three Cutting Edges for 90°
Shoulder and Face Milling
APMX
RE

Dimensions Tough 1 Hard Recommended Machining Data

IC830 IC808 ap fz
Designation APMX RE IC S (mm) (mm/t)
TR90 TXMT 070204 2.50 0.40 5.30 2.40 • • 0.50-2.50 0.10-0.20
TR90 TXMT 100408 4.00 0.80 7.30 3.90 • • 0.90-4.00 0.10-0.20
• For cutting speed recommendations, see pages 542-547
For tools, see pages: TR6 ER (272) • TR6 ER-M (273) • TR6 FR (275)

TRFF TXMT S
Single-Sided Inserts with IC Rd°
Three Cutting Edges for APMX
High Feed Machining KRINS
RE

Recommended
Dimensions Tough 1 Hard
Machining Data

ap
fz
Designation APMX RE Rg (1) IC S KRINS (2) IC830 IC808 (mm) (mm/t)
TRFF TXMT 0702 0.60 0.50 1.00 5.30 2.40 18.0 • • 0.20-0.60 0.50-0.80
TRFF TXMT 1004 0.80 0.70 1.40 7.30 3.90 17.0 • • 0.20-0.80 0.70-1.20
(1) Radius for programming
(2) Edge angle related to the wiper
For tools, see pages: TR6 ER (272) • TR6 ER-M (273) • TR6 FR (275)
