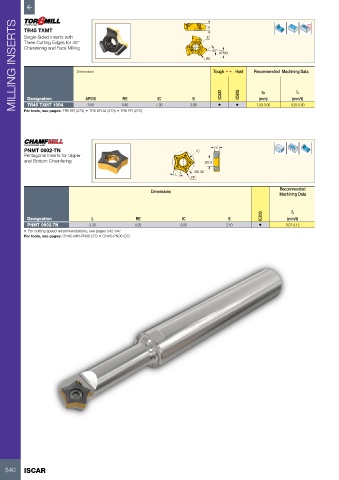

Page 542 - ISCAR(MILLINGCATALOG 38_2021)

MILLING INSERTS TR45 TXMT Dimensions RE S 45° APMX Recommended Machining Data Rd°

Single-Sided Inserts with
IC
Three Cutting Edges for 45°
Chamfering and Face Milling

Tough 1 Hard

ap
fz
IC
APMX
RE
(mm)
(mm/t)
S
Designation
3.00
0.40
TR45 TXMT 1004
For tools, see pages: TR6 ER (272) • TR6 ER-M (273) • TR6 FR (275) 7.30 3.90 • IC830 • IC808 1.00-3.00 0.20-0.40

PNMT 0602-TN IC S
Pentagonal Inserts for Upper
and Bottom Chamfering Ø2.9
Ø8.36
L
RE
Recommended
Dimensions Machining Data

IC830 fz
Designation L RE IC S (mm/t)
PNMT 0602-TN 2.30 0.20 6.00 2.10 • 0.07-0.12
• For cutting speed recommendations, see pages 542-547
For tools, see pages: CH45-MM-PN06 (37) • CH45-PN06 (37)

540 ISCAR
