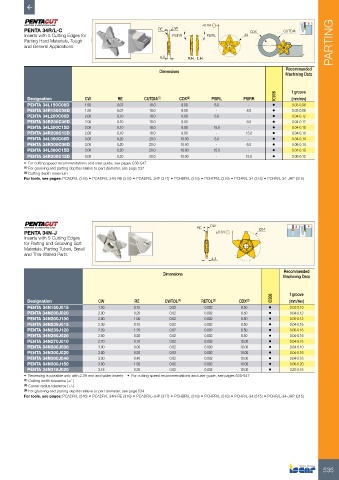

Page 537 - ISCAR(TURNING-CATALOG-42-2022)

±0.04
PENTA 34R/L-C RE CW CDX CUTDIA
Inserts with 5 Cutting Edges for PSIRR PSIRL 34
Parting Hard Materials, Tough PARTING
and General Applications
4.3 R.H. L.H.

Dimensions Recommended
Machining Data

IC908 f groove
Designation CW RE CUTDIA (1) CDX (2) PSIRL PSIRR (mm/rev)
PENTA 34L150C08D 1.50 0.07 18.0 8.00 8.0 - • 0.03-0.08
PENTA 34R150C08D 1.50 0.07 18.0 8.00 - 8.0 • 0.03-0.08
PENTA 34L200C06D 2.00 0.10 18.0 8.00 6.0 - • 0.04-0.12
PENTA 34R200C06D 2.00 0.10 18.0 8.00 - 6.0 • 0.04-0.12
PENTA 34L200C15D 2.00 0.10 18.0 8.00 15.0 - • 0.04-0.10
PENTA 34R200C15D 2.00 0.10 18.0 8.00 - 15.0 • 0.04-0.10
PENTA 34L300C06D 3.00 0.20 20.0 10.00 6.0 - • 0.04-0.14
PENTA 34R300C06D 3.00 0.20 20.0 10.00 - 6.0 • 0.06-0.14
PENTA 34L300C15D 3.00 0.20 20.0 10.00 15.0 - • 0.04-0.10
PENTA 34R300C15D 3.00 0.20 20.0 10.00 - 15.0 • 0.06-0.12
• For cutting speed recommendations and user guide, see pages 538-547
(1) For grooving and parting depths relative to part diameter, see page 537
(2) Cutting depth maximum
For tools, see pages: PCADR/L (316) • PCADR/L 34N-RE (318) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-34 (315) • PCHR/L-34-JHP (315)

RE CW
PENTA 34N-J ±0.04 Ø34
Inserts with 5 Cutting Edges
for Parting and Grooving Soft
Materials, Parting Tubes, Small
and Thin-Walled Parts
4.3

Dimensions Recommended
Machining Data

IC908 f groove
Designation CW RE CWTOL (1) RETOL (2) CDX (3) (mm/rev)
PENTA 34N150J015 1.50 0.15 0.02 0.002 8.50 • 0.03-0.10
PENTA 34N200J020 2.00 0.20 0.02 0.002 8.50 • 0.04-0.12
PENTA 34N200J100 2.00 1.00 0.02 0.002 8.50 • 0.05-0.12
PENTA 34N239J015 2.39 0.15 0.02 0.002 8.50 • 0.04-0.16
PENTA 34N239J120 2.39 1.20 0.02 0.002 8.50 • 0.06-0.16
PENTA 34N250J020 2.50 0.20 0.02 0.002 8.50 • 0.04-0.16
PENTA 34N270J010 2.70 0.10 0.02 0.002 10.00 • 0.04-0.16
PENTA 34N300J000 3.00 0.00 0.02 0.000 10.00 • 0.04-0.10
PENTA 34N300J020 3.00 0.20 0.02 0.002 10.00 • 0.04-0.16
PENTA 34N300J040 3.00 0.40 0.02 0.002 10.00 • 0.04-0.16
PENTA 34N300J150 3.00 1.50 0.02 0.002 10.00 • 0.06-0.20
PENTA 34N318J020 3.18 0.20 0.02 0.002 10.00 • 0.20-0.16
• Recessing is possible only with 2.39 mm and wider inserts • For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) For grooving and parting depths relative to part diameter, see page 534
For tools, see pages: PCADR/L (316) • PCADR/L 34N-RE (318) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-34 (315) • PCHR/L-34-JHP (315)

535
