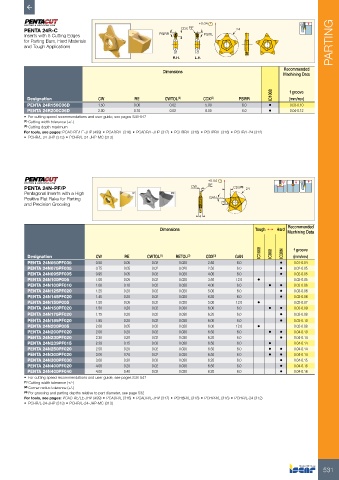

Page 533 - ISCAR(TURNING-CATALOG-42-2022)

±0.04
PENTA 24R-C CDX RE 24
Inserts with 5 Cutting Edges PSIRR PSIRL
for Parting Bars, Hard Materials PARTING
and Tough Applications
R.H. L.H.
Recommended
Dimensions
Machining Data

IC1008 f groove
Designation CW RE CWTOL (1) CDX (2) PSIRR (mm/rev)
PENTA 24R150C06D 1.50 0.06 0.02 5.00 6.0 • 0.03-0.10
PENTA 24R200C06D 2.00 0.10 0.02 6.00 6.0 • 0.04-0.12
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-)
(2) Cutting depth maximum
For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)
• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

±0.04
PENTA 24N-PF/P CW RE CDX (3) 24
Pentagonal Inserts with a High
Positive Flat Rake for Parting GAN
and Precision Grooving 7º

4
Recommended
Dimensions Tough 1 Hard
Machining Data

IC1008 IC908 IC30N f groove
Designation CW RE CWTOL (1) RETOL (2) CDX (3) GAN (mm/rev)
PENTA 24N050PF005 0.50 0.05 0.02 0.020 2.50 6.0 • 0.01-0.04
PENTA 24N075PF005 0.75 0.05 0.02 0.020 2.50 6.0 • 0.02-0.05
PENTA 24N095PF005 0.95 0.05 0.02 0.020 4.00 6.0 • 0.02-0.05
PENTA 24N100P005 1.00 0.05 0.02 0.020 3.50 12.0 • 0.02-0.05
PENTA 24N100PF010 1.00 0.10 0.02 0.020 4.00 6.0 • • 0.03-0.06
PENTA 24N125PF020 1.25 0.20 0.02 0.020 5.00 6.0 • 0.03-0.06
PENTA 24N145PF020 1.45 0.20 0.02 0.020 6.20 6.0 • 0.03-0.06
PENTA 24N150P005 1.50 0.05 0.02 0.020 5.00 12.0 • 0.02-0.07
PENTA 24N150PF020 1.50 0.20 0.02 0.030 6.00 6.0 • • 0.03-0.09
PENTA 24N175PF020 1.75 0.20 0.02 0.030 6.20 6.0 • 0.02-0.08
PENTA 24N185PF020 1.85 0.20 0.02 0.030 6.00 6.0 • 0.03-0.10
PENTA 24N200P005 2.00 0.05 0.02 0.020 6.00 12.0 • 0.02-0.08
PENTA 24N200PF020 2.00 0.20 0.02 0.030 6.50 6.0 • • 0.04-0.10
PENTA 24N230PF020 2.30 0.20 0.02 0.030 6.20 6.0 • 0.04-0.14
PENTA 24N239PF015 2.39 0.15 0.02 0.030 6.50 6.0 • 0.04-0.14
PENTA 24N250PF020 2.50 0.20 0.02 0.030 6.50 6.0 • • 0.04-0.14
PENTA 24N300PF020 3.00 0.20 0.02 0.030 6.50 6.0 • • 0.04-0.14
PENTA 24N300PF030 3.00 0.30 0.02 0.030 6.20 6.0 • 0.04-0.15
PENTA 24N400PF020 4.00 0.20 0.02 0.030 6.50 6.0 • 0.04-0.16
PENTA 24N400PF040 4.00 0.40 0.02 0.030 6.20 6.0 • 0.04-0.16
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) For grooving and parting depths relative to part diameter, see page 532
For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)
• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

531
