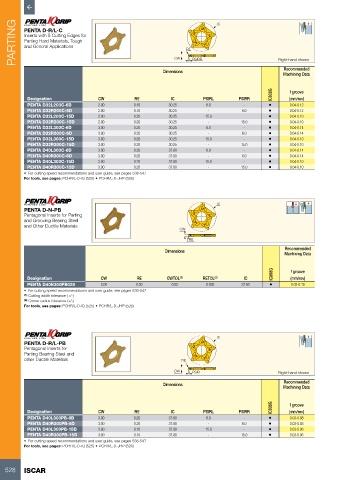

Page 530 - ISCAR(TURNING-CATALOG-42-2022)
P. 530

PARTING  PENTA D-R/L-C                                      RE         IC

          Inserts with 5 Cutting Edges for
          Parting Hard Materials, Tough
          and General Applications
                                                              CW
                                                                                                     Recommended
                                                          Dimensions  PSIRR                        Right-hand shown
                                                                                                     Machining Data

                                                                                                IC808G  f groove
           Designation              CW          RE           IC         PSIRL        PSIRR             (mm/rev)
           PENTA D32L200C-6D        2.00        0.10        30.25        6.0           -       •       0.04-0.12
           PENTA D32R200C-6D        2.00        0.10        30.25         -           6.0      •       0.04-0.12
           PENTA D32L200C-15D       2.00        0.20        30.25        15.0          -       •       0.04-0.10
           PENTA D32R200C-15D       2.00        0.20        30.25         -           15.0     •       0.04-0.10
           PENTA D32L300C-6D        3.00        0.20        30.25        6.0           -       •       0.04-0.14
           PENTA D32R300C-6D        3.00        0.20        30.25         -           6.0      •       0.04-0.14
           PENTA D32L300C-15D       3.00        0.20        30.25        15.0          -       •       0.04-0.10
           PENTA D32R300C-15D       3.00        0.20        30.25         -           15.0     •       0.04-0.10
           PENTA D40L300C-6D        3.00        0.20        37.80        6.0           -       •       0.04-0.14
           PENTA D40R300C-6D        3.00        0.20        37.80         -           6.0      •       0.04-0.14
           PENTA D40L300C-15D       3.00        0.20        37.80        15.0          -       •       0.04-0.10
           PENTA D40R300C-15D       3.00        0.20        37.80         -           15.0     •       0.04-0.10
          •  For cutting speed recommendations and user guide, see pages 538-547
          For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526)

                                                                             IC
          PENTA D-N-PB
          Pentagonal Inserts for Parting
          and Grooving Bearing Steel
          and Other Ductile Materials
                                                                CW
                                                                   RE
                                                           Dimensions                                Recommended
                                                                                                     Machining Data


                                                                                                 IC808G  f groove
           Designation              CW           RE         CWTOL (1)   RETOL (2)      IC              (mm/rev)
           PENTA D40N300PB020       3.00         0.20        0.02        0.030        37.80     •      0.03-0.10
          •  For cutting speed recommendations and user guide, see pages 538-547
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526)



                                                                             IC
          PENTA D-R/L-PB
          Pentagonal Inserts for
          Parting Bearing Steel and
          other Ductile Materials                                RE

                                                              CW     PSIR                          Right-hand shown
                                                                                                     Recommended
                                                          Dimensions
                                                                                                     Machining Data

                                                                                                IC808G  f groove
           Designation              CW          RE           IC         PSIRL        PSIRR             (mm/rev)
           PENTA D40L300PB-6D       3.00        0.20        37.80        6.0           -       •       0.03-0.08
           PENTA D40R300PB-6D       3.00        0.20        37.80         -           6.0      •       0.03-0.08
           PENTA D40L300PB-15D      3.00        0.10        37.80        15.0          -       •       0.03-0.06
           PENTA D40R300PB-15D      3.00        0.10        37.80         -           15.0     •       0.03-0.06
          •  For cutting speed recommendations and user guide, see pages 538-547
          For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526)
