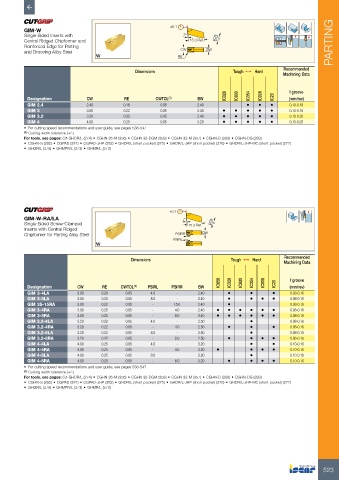

Page 525 - ISCAR(TURNING-CATALOG-42-2022)

GIM-W ±0.1
Single-Sided Inserts with 7°
Central Ridged Chipformer and 15.3 Ref. 5 PARTING
Reinforced Edge for Parting
and Grooving Alloy Steel CW BW
RE

Dimensions Tough 1 Hard Recommended
Machining Data

IC328 IC830 IC354 IC908 f groove
Designation CW RE CWTOL (1) BW IC20 (mm/rev)
GIM 2.4 2.40 0.18 0.05 2.40 • • • 0.10-0.18
GIM 3 3.00 0.22 0.05 2.40 • • • • • 0.10-0.18
GIM 3.2 3.20 0.22 0.05 2.40 • • • • • 0.10-0.20
GIM 4 4.00 0.25 0.05 3.20 • • • • • 0.15-0.20
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-)
For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283)
• CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277)
• GHGR/L (278) • GHMPR/L (273) • GHMR/L (273)

±0.1
GIM-W-RA/LA 7˚
Single-Sided Screw-Clamped 15.3 Ref. 5
Inserts with Central Ridged
Chipformer for Parting Alloy Steel PSIRR BW
PSIRL

Recommended
Dimensions Tough 1 Hard
Machining Data

IC656 IC328 IC830 IC354 IC908 IC20 f groove
Designation CW RE CWTOL (1) PSIRL PSIRR BW (mm/rev)
GIM 3-4LA 3.00 0.20 0.05 4.0 - 2.40 • • • 0.08-0.16
GIM 3-8LA 3.00 0.20 0.05 8.0 - 2.40 • • • • 0.08-0.16
GIM 3S-15RA 3.00 0.22 0.05 - 15.0 2.40 • 0.08-0.16
GIM 3-4RA 3.00 0.25 0.05 - 4.0 2.40 • • • • • • 0.08-0.16
GIM 3-8RA 3.00 0.25 0.05 - 8.0 2.40 • • • • • • 0.08-0.16
GIM 3.2-4LA 3.20 0.22 0.05 4.0 - 2.50 • 0.08-0.16
GIM 3.2-4RA 3.20 0.22 0.05 - 4.0 2.50 • • • 0.08-0.16
GIM 3.2-8LA 3.20 0.22 0.05 8.0 - 2.50 • 0.08-0.16
GIM 3.2-8RA 3.20 0.22 0.05 - 8.0 2.50 • • • • 0.08-0.16
GIM 4-4LA 4.00 0.25 0.05 4.0 - 3.20 • • 0.10-0.16
GIM 4-4RA 4.00 0.25 0.05 - 4.0 3.20 • • • • 0.10-0.16
GIM 4-8LA 4.00 0.25 0.05 8.0 - 3.20 • 0.10-0.16
GIM 4-8RA 4.00 0.25 0.05 - 8.0 3.20 • • • • 0.10-0.16
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-)
For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283)
• CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277)
• GHGR/L (278) • GHMPR/L (273) • GHMR/L (273)

523
