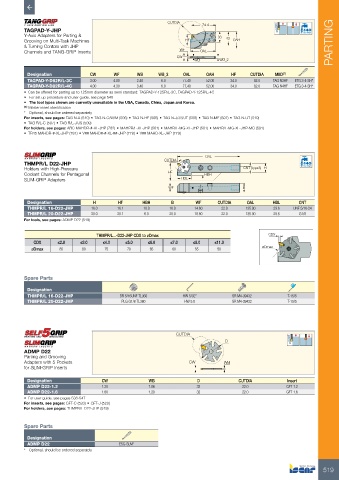

Page 521 - ISCAR(TURNING-CATALOG-42-2022)

CUTDIA 74.4
TAGPAD-Y-JHP Bar Max
Y-Axis Adapters for Parting & 33 43
Grooving on Multi-Task Machines HF OAH PARTING

& Turning Centers with JHP
Channels and TANG-GRIP Inserts WF OAL
CW
WB WB_2

Designation CW WF WB WB_2 OAL OAH HF CUTDIA MIID (1)
TAGPAD-Y-D82R/L-3C 3.00 4.80 2.40 6.0 77.40 52.00 34.0 82.0 TAG N3HF ETG 3-4-SH*
TAGPAD-Y-D82R/L-4C 4.00 4.30 3.40 6.0 77.40 52.00 34.0 82.0 TAG N4HF ETG 3-4-SH*
• Can be offered for parting up to 125mm diameter as semi standard: TAGPAD-Y-125R\L-3C, TAGPAD-Y-125R\L-4C
• For set up procedure and user guide, see page 548
• The tool types shown are currently unavailable in the USA, Canada, China, Japan and Korea.
(1) Master insert identification
* Optional, should be ordered separately
For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-MF (507) • TAG N-UT (510)
• TAG R/L-C (507) • TAG R/L-J/JS (509)
For holders, see pages: ABC MAHDR-#-XL-JHP (782) • MAHPR/L-XL-JHP (561) • MAHR/L-MG-XL-JHP (501) • MAHR/L-MG-XL-JHP-MC (501)
• TR45 MAHDR-#-XL-JHP (781) • V## MAHD#-#-XL-##-JHP (778) • V## MAHD-XL-JHP (779)

OAL
THMPR/L D22-JHP CUTDIA
Holders with High-Pressure CNT (typx3) H Bar Max
Coolant Channels for Pentagonal HF HBH
SLIM-GRIP Adapters HBL
WF B

Designation H HF HBH B WF CUTDIA OAL HBL CNT
THMPR/L 16-D22-JHP 16.0 16.1 10.0 16.0 14.60 22.0 135.00 29.6 UNF 5/16-24
THMPR/L 20-D22-JHP 20.0 20.1 6.0 20.0 18.60 22.0 135.00 29.6 G1/8
For tools, see pages: ADMP D22 (519)

THMPR/L...-D22-JHP CDX to øDmax CDX
CDX ≤2.0 ≤3.0 ≤4.0 ≤5.0 ≤6.0 ≤7.0 ≤8.0 ≤11.0
øDmax 85 80 75 70 65 60 55 50 øDmax

Spare Parts

Designation
THMPR/L 16-D22-JHP SR 5/16UNF TL360 HW 5/32" SR M4-39432 T-15/5
THMPR/L 20-D22-JHP PLG G1/8 TL360 HW 5.0 SR M4-39432 T-15/5

CUTDIA
D
ADMP D22
Parting and Grooving
Adapters with 5 Pockets CW WB
for SLIM-GRIP Inserts

Designation CW WB D CUTDIA Insert
ADMP D22-1.2 1.20 1.06 32 22.0 GFT 1.2
ADMP D22-1.6 1.60 1.20 32 22.0 GFT 1.6
• For user guide, see pages 538-547
For inserts, see pages: GFT-C (520) • GFT-J (520)
For holders, see pages: THMPR/L D22-JHP (519)

Spare Parts
Designation
ADMP D22 ESG-SLM*
* Optional, should be ordered separately

519
