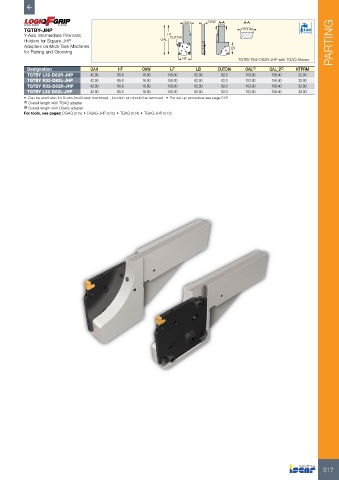

Page 519 - ISCAR(TURNING-CATALOG-42-2022)

OAH OAW A-A A-A
TGTBY-JHP HTPRM
Y-Axis Intermediate Prismatic LF CUTDIA Bar Max
Holders for Square JHP OAL PARTING
Adapters on Multi-Task Machines LB
for Parting and Grooving
HF TGTBY R32-D82R-JHP with TGAQ Shown
Designation OAH HF OAW LF LB CUTDIA OAL (1) OAL_2 (2) HTPRM
TGTBY L32-D82R-JHP 42.00 65.8 16.00 150.00 62.00 82.0 153.00 156.40 32.00
TGTBY R32-D82L-JHP 42.00 65.8 16.00 150.00 62.00 82.0 153.00 156.40 32.00
TGTBY R32-D82R-JHP 42.00 65.8 16.00 150.00 62.00 82.0 153.00 156.40 32.00
TGTBY L32-D82L-JHP 42.00 65.8 16.00 150.00 62.00 82.0 153.00 156.40 32.00
• Can be used also for X-axis (multi-task machines) - location pin should be removed • For set up procedure see page 518
(1) Overall length with TGAQ adapter
(2) Overall length with DGAQ adapter
For tools, see pages: DGAQ (515) • DGAQ-JHP (515) • TGAQ (514) • TGAQ-JHP (513)
