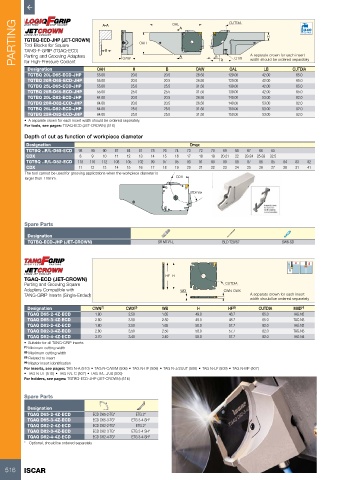

Page 518 - ISCAR(TURNING-CATALOG-42-2022)

PARTING TGTBQ-ECD-JHP (JET-CROWN) A-A OAH OAL A CUTDIA A separate crown for each insert Bar Max

H
Tool Blocks for Square
TANG-F-GRIP (TGAQ-ECD)
B
Parting and Grooving Adapters
for High-Pressure Coolant
CUTDIA
LB
Designation OAH OAW H B A OAW 6.1 LB OAL G1/8 width should be ordered separately
TGTBQ 20L-D65-ECD-JHP 55.00 20.0 20.5 26.50 129.00 42.00 65.0
TGTBQ 20R-D65-ECD-JHP 55.00 20.0 20.5 26.50 129.00 42.00 65.0
TGTBQ 25L-D65-ECD-JHP 55.00 25.0 25.5 31.50 139.00 42.00 65.0
TGTBQ 25R-D65-ECD-JHP 55.00 25.0 25.5 31.50 139.00 42.00 65.0
TGTBQ 20L-D82-ECD-JHP 64.00 20.0 20.5 26.50 140.00 53.00 82.0
TGTBQ 20R-D82-ECD-JHP 64.00 20.0 20.5 26.50 140.00 53.00 82.0
TGTBQ 25L-D82-ECD-JHP 64.00 25.0 25.5 31.50 150.00 53.00 82.0
TGTBQ 25R-D82-ECD-JHP 64.00 25.0 25.5 31.50 150.00 53.00 82.0
• A separate crown for each insert width should be ordered separately.
For tools, see pages: TGAQ-ECD (JET-CROWN) (516)
Depth of cut as function of workpiece diameter
Designation Dmax
TGTBQ ..R/L-D65-ECD 98 95 90 87 84 81 78 76 74 73 72 70 69 68 67 66 65
CDX 8 9 10 11 12 13 14 15 16 17 18 19 20-21 22 23-24 25-33 32.5
TGTBQ ..R/L-D82-ECD 118 116 112 108 105 102 99 97 95 93 91 90 89 88 87 86 85 84 83 82
CDX 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 31 41
The tool cannot be used for grooving applications when the workpiece diameter is
larger than 118mm. CDX

ØDmax

Spare Parts

Designation
TGTBQ-ECD-JHP (JET-CROWN) SR M7-R-L BLD T20/S7 SW6-SD

TGAQ-ECD (JET-CROWN) HF H
Parting and Grooving Square CUTDIA
Adapters Compatible with WB CWN-CWX
TANG-GRIP Inserts (Single-Ended) A separate crown for each insert
width should be ordered separately
Designation CWN (1) CWX (2) WB H HF (3) CUTDIA MIID (4)
TGAQ D65-2-4Z-ECD 1.80 2.50 1.65 49.0 48.7 65.0 TAG N2
TGAQ D65-3-4Z-ECD 2.80 3.50 2.50 49.0 48.7 65.0 TAG N3
TGAQ D82-2-4Z-ECD 1.80 2.50 1.65 58.0 57.7 82.0 TAG N2
TGAQ D82-3-4Z-ECD 2.80 3.50 2.50 58.0 57.7 82.0 TAG N3
TGAQ D82-4-4Z-ECD 3.70 3.40 3.40 58.0 57.7 82.0 TAG N4
• Suitable for all TANG-GRIP inserts
(1) Minimum cutting width
(2) Maximum cutting width
(3) Related to insert
(4) Master insert identification
For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)
• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)
For holders, see pages: TGTBQ-ECD-JHP (JET-CROWN) (516)

Spare Parts

Designation
TGAQ D65-2-4Z-ECD ECD D65-2-TG* ETG 2*
TGAQ D65-3-4Z-ECD ECD D65-3-TG* ETG 3-4-SH*
TGAQ D82-2-4Z-ECD ECD D82-2-TG* ETG 2*
TGAQ D82-3-4Z-ECD ECD D82-3-TG* ETG 3-4-SH*
TGAQ D82-4-4Z-ECD ECD D82-4-TG* ETG 3-4-SH*
* Optional, should be ordered separately

516 ISCAR
