P. 520

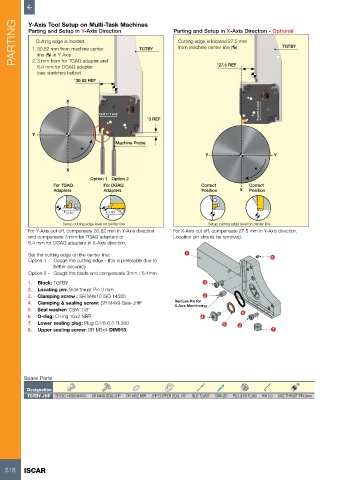

PARTING  Y-Axis Tool Setup on Multi-Task Machines       Parting and Setup in X-Axis Direction - Optional
           Parting and Setup in Y-Axis Direction
              Cutting edge is located:
                                                                Cutting edge is located 27.5 mm
                                                                                                    TGTBY
                                                                from machine center line ( )
            1. 30.82 mm from machine center
                                                  TGTBY
              line ( ) in Y Axis
            2. 3 mm from for TGAQ adapter and
              6.4 mm for DGAQ adapter
              (see sketches below)                                           *27.5 REF
                           *30.82 REF


                        X
                                                                                            Feed (in X axis)
                                    Feed (in Y axis)
                                                     *3 REF

            Y
                                          Machine Probe
                              n
                                                                         Y                       Y

                        X                                                                  n
                                 Option 1 Option 2
                    For TGAQ         For DGAQ                           Correct          Correct
                    Adapters         Adapters                           Position     X   Position



                        3 REF         6.4 REF

                       Setup cutting edge level on center line            Setup cutting edge level on center line
          * For Y-Axis cut off, compensate 30.82 mm in Y-Axis direction  * For X-Axis cut off, compensate 27.5 mm in Y-Axis direction.
           and compensate 3 mm for TGAQ adapters or           Location pin should be removed.
           6.4 mm for DGAQ adapters in X-Axis direction.

           Set the cutting edge on the center line:               1                             8
           Option 1 - Gauge the cutting edge - this is preferable due to
                    better accuracy
           Option 2 - Gauge the blade and compensate 3mm / 6.4mm
           1.  Block: TGTBY                                              3
           2.  Locating pin: Side thrust Pin 3 mm
           3.  Clamping screw : SR M4x10 ISO 14580                       2
           4.  Clamping & sealing screw: SR M4x9-Seal-JHP     Remove Pin for
                                                              X-Axis Machinning
           5.  Seal washer: CSW 1/8’’                                                 6
           6.  O-ring: O-ring 10x2 NBR                                  4
           7.  Lower sealing plug: Plug G1/8-6.5 TL360                         5     3
           8.  Upper sealing screw: SR M3x4-DIN913                                               7








         Spare Parts

           Designation
           TGTBY-JHP  SR ISO 14580 M4X10  SR M4X9-SEAL-JHP  OR 16X2 NBR  JHP COPPER SEAL 1/8"  BLD T20/S7  SW6-SD  PLG G1/8 TL360  HW 5.0  SIDE THRUST PIN 3mm
