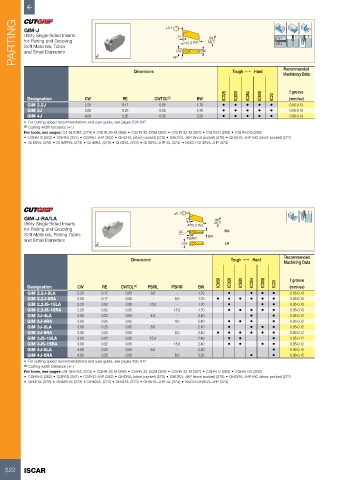

PARTING GIM-J ±0.1 CW 15.3 Ref. BW 5

Utility Single-Sided Inserts
7°
for Parting and Grooving
Soft Materials, Tubes
and Small Diameters

Dimensions RE Tough 1 Hard Recommended
Machining Data

IC328 IC830 IC354 IC908 f groove
Designation CW RE CWTOL (1) BW IC20 (mm/rev)
GIM 2.2J 2.20 0.17 0.05 1.70 • • • • • 0.06-0.13
GIM 3J 3.00 0.25 0.05 2.40 • • • • • 0.08-0.15
GIM 4J 4.00 0.25 0.05 3.20 • • • • • 0.08-0.18
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-)
For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283)
• CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277)
• GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) • GHSR/L (373) • GHSR/L-JHP-SL (374) • NQCH-GHSR/L-JHP (374)

±0.1
GIM-J-RA/LA 7°
Utility Single-Sided Inserts 15.3 Ref. 5
for Parting and Grooving RA
Soft Materials, Parting Tubes RE BW
and Small Diameters PSIRR
CW LA

Recommended
Dimensions Tough 1 Hard
Machining Data

IC656 IC328 IC830 IC354 IC908 IC20 f groove
Designation CW RE CWTOL (1) PSIRL PSIRR BW (mm/rev)
GIM 2.2J-8LA 2.20 0.17 0.05 8.0 - 1.70 • • • • 0.05-0.10
GIM 2.2J-8RA 2.20 0.17 0.05 - 8.0 1.70 • • • • • • 0.05-0.10
GIM 2.2JS-15LA 2.20 0.02 0.05 15.0 - 1.70 • • • 0.05-0.10
GIM 2.2JS-15RA 2.20 0.02 0.05 - 15.0 1.70 • • • • • 0.05-0.10
GIM 3J-4LA 3.00 0.22 0.05 4.0 - 2.40 • • 0.05-0.12
GIM 3J-4RA 3.00 0.25 0.05 - 4.0 2.40 • • • • 0.05-0.12
GIM 3J-8LA 3.00 0.25 0.05 8.0 - 2.40 • • • • 0.05-0.12
GIM 3J-8RA 3.00 0.25 0.05 - 8.0 2.40 • • • • • • 0.05-0.12
GIM 3JS-15LA 3.00 0.02 0.05 15.0 - 2.40 • • • 0.05-0.12
GIM 3JS-15RA 3.00 0.02 0.05 - 15.0 2.40 • • • • 0.05-0.12
GIM 4J-6LA 4.00 0.25 0.05 6.0 - 3.20 • 0.08-0.15
GIM 4J-6RA 4.00 0.25 0.05 - 6.0 3.20 • • 0.08-0.15
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-)
For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283)
• CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277)
• GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) • GHSR/L (373) • GHSR/L-JHP-SL (374) • NQCH-GHSR/L-JHP (374)
