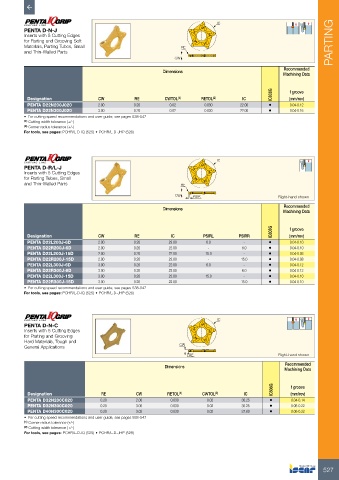

P. 529

IC

          PENTA D-N-J
          Inserts with 5 Cutting Edges
          for Parting and Grooving Soft                                                                               PARTING
          Materials, Parting Tubes, Small                        RE
            and Thin-Walled Parts
                                                              CW

                                                          Dimensions                                 Recommended
                                                                                                     Machining Data

                                                                                                IC808G  f groove
           Designation              CW          RE         CWTOL (1)    RETOL (2)     IC               (mm/rev)
           PENTA D22N200J020        2.00        0.20         0.02        0.030       22.00     •       0.04-0.12
           PENTA D22N300J020        3.00        0.20         0.02        0.030       22.00     •       0.04-0.16
          •  For cutting speed recommendations and user guide, see pages 538-547
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526)



                                                                             IC
          PENTA D-R/L-J
          Inserts with 5 Cutting Edges
          for Parting Tubes, Small
          and Thin-Walled Parts                                  RE
                                                              CW     PSIR                          Right-hand shown

                                                                                                     Recommended
                                                          Dimensions
                                                                                                     Machining Data

                                                                                                IC808G  f groove
           Designation              CW          RE           IC         PSIRL        PSIRR             (mm/rev)
           PENTA D22L200J-6D        2.00        0.20        22.00        6.0           -       •       0.04-0.10
           PENTA D22R200J-6D        2.00        0.20        22.00         -           6.0      •       0.04-0.10
           PENTA D22L200J-15D       2.00        0.20        22.00        15.0          -       •       0.04-0.08
           PENTA D22R200J-15D       2.00        0.20        22.00         -           15.0     •       0.04-0.08
           PENTA D22L300J-6D        3.00        0.20        22.00        6.0           -       •       0.04-0.12
           PENTA D22R300J-6D        3.00        0.20        22.00         -           6.0      •       0.04-0.12
           PENTA D22L300J-15D       3.00        0.20        22.00        15.0          -       •       0.04-0.10
           PENTA D22R300J-15D       3.00        0.20        22.00         -           15.0     •       0.04-0.10
          •  For cutting speed recommendations and user guide, see pages 538-547
          For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526)

                                                                             IC

          PENTA D-N-C
          Inserts with 5 Cutting Edges
          for Parting and Grooving
          Hard Materials, Tough and                             CW
          General Applications
                                                                   RE                              Right-hand shown
                                                                                                     Recommended
                                                           Dimensions
                                                                                                     Machining Data

                                                                                                 IC808G  f groove
           Designation               RE          CW         RETOL (1)   CWTOL (2)      IC              (mm/rev)
           PENTA D32N200C020        0.20         2.00        0.030        0.02        30.25     •      0.04-0.14
           PENTA D32N300C020        0.20         3.00        0.030        0.02        30.25     •      0.06-0.22
           PENTA D40N300C020        0.20         3.02        0.030        0.02        37.80     •      0.06-0.22
          •  For cutting speed recommendations and user guide, see pages 538-547
          (1)  Corner radius tolerance (+/-)
          (2)  Cutting width tolerance (+/-)
          For tools, see pages: PCHR/L-D-IQ (525) • PCHR/L-D-JHP (526)
