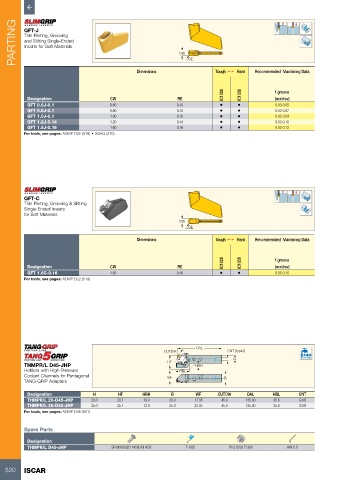

Page 522 - ISCAR(TURNING-CATALOG-42-2022)

GFT-J
PARTING CW
Thin Parting, Grooving
and Slitting Single-Ended
Inserts for Soft Materials

Dimensions RE Tough 1 Hard Recommended Machining Data

IC1028 IC1008 f groove
Designation CW RE (mm/rev)
GFT 0.6J-0.1 0.60 0.10 • • 0.03-0.05
GFT 0.8J-0.1 0.80 0.10 • • 0.03-0.07
GFT 1.0J-0.1 1.00 0.10 • • 0.03-0.09
GFT 1.2J-0.14 1.20 0.14 • • 0.03-0.10
GFT 1.6J-0.16 1.60 0.16 • • 0.03-0.12
For tools, see pages: ADMP D22 (519) • SGAQ (376)

GFT-C
Thin Parting, Grooving & Slitting
Single-Ended Inserts
for Soft Materials
CW
RE

Dimensions Tough 1 Hard Recommended Machining Data

IC1028 IC1008 f groove
Designation CW RE (mm/rev)
GFT 1.6C-0.16 1.60 0.16 • • 0.05-0.15
For tools, see pages: ADMP D22 (519)

CUTDIA OAL CNT (typx3)
H Bar Max
THMPR/L D45-JHP HF HBH
Holders with High-Pressure HBL
Coolant Channels for Pentagonal WF B
TANG-GRIP Adapters

Designation H HF HBH B WF CUTDIA OAL HBL CNT
THMPR/L 20-D45-JHP 20.0 20.1 18.0 20.0 17.35 45.0 135.00 35.6 G1/8
THMPR/L 25-D45-JHP 25.0 25.1 13.0 25.0 22.35 45.0 135.00 35.6 G1/8
For tools, see pages: ADMP D45 (521)

Spare Parts
Designation
THMPR/L D45-JHP SR M3X8 ISO 14580 BLACK T-10/5 PLG G1/8 TL360 HW 5.0

520 ISCAR
