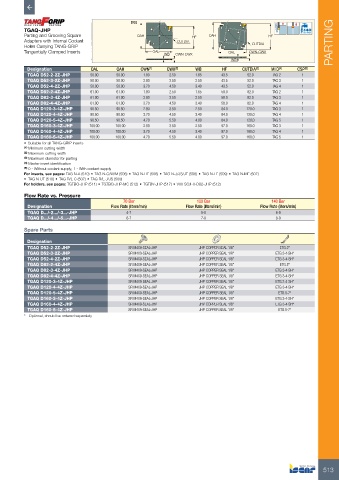

Page 515 - ISCAR(TURNING-CATALOG-42-2022)

D52
TGAQ-JHP
Parting and Grooving Square OAH HF OAH HF Bar Max
Adapters with Internal Coolant CUTDIA PARTING
Holes Carrying TANG-GRIP CUTDIA
Tangentially Clamped Inserts OAL WB CWN-CWX OAL CWN-CWX
WB

Designation OAL OAH CWN (1) CWX (2) WB HF CUTDIA (3) MIID (4) CSP (5)
TGAQ D52-2-2Z-JHP 50.00 50.00 1.80 2.50 1.65 43.5 52.0 TAG 2 1
TGAQ D52-3-2Z-JHP 50.00 50.00 2.80 3.50 2.50 43.5 52.0 TAG 3 1
TGAQ D52-4-2Z-JHP 50.00 50.00 3.70 4.50 3.40 43.5 52.0 TAG 4 1
TGAQ D82-2-4Z-JHP 61.00 61.00 1.80 2.50 1.65 58.0 82.0 TAG 2 1
TGAQ D82-3-4Z-JHP 61.00 61.00 2.80 3.50 2.50 58.0 82.0 TAG 3 1
TGAQ D82-4-4Z-JHP 61.00 61.00 3.70 4.50 3.40 58.0 82.0 TAG 4 1
TGAQ D120-3-4Z-JHP 90.50 90.50 2.80 3.50 2.50 84.0 120.0 TAG 3 1
TGAQ D120-4-4Z-JHP 90.50 90.50 3.70 4.50 3.40 84.0 120.0 TAG 4 1
TGAQ D120-5-4Z-JHP 90.50 90.50 4.70 5.50 4.00 84.0 120.0 TAG 5 1
TGAQ D160-3-4Z-JHP 100.00 100.00 2.80 3.50 2.50 97.0 160.0 TAG 3 1
TGAQ D160-4-4Z-JHP 100.00 100.00 3.70 4.50 3.40 97.0 160.0 TAG 4 1
TGAQ D160-5-4Z-JHP 100.00 100.00 4.70 5.50 4.00 97.0 160.0 TAG 5 1
• Suitable for all TANG-GRIP inserts
(1) Minimum cutting width
(2) Maximum cutting width
(3) Maximum diameter for parting
(4) Master insert identification
(5) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)
• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)
For holders, see pages: TGTBQ-JHP (511) • TGTBQ-JHP-MC (512) • TGTBY-JHP (517) • V## SQ#-#-D82-JHP (512)
Flow Rate vs. Pressure
70 Bar 100 Bar 140 Bar
Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min)
TGAQ D.../-2.../-3...-JHP 4-7 5-8 6-9
TGAQ D.../-4.../-5...-JHP 6-7 7-8 8-9

Spare Parts
Designation
TGAQ D52-2-2Z-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 2*
TGAQ D52-3-2Z-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*
TGAQ D52-4-2Z-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*
TGAQ D82-2-4Z-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 2*
TGAQ D82-3-4Z-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*
TGAQ D82-4-4Z-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*
TGAQ D120-3-4Z-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*
TGAQ D120-4-4Z-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*
TGAQ D120-5-4Z-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 5-7*
TGAQ D160-3-4Z-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*
TGAQ D160-4-4Z-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 3-4-SH*
TGAQ D160-5-4Z-JHP SR M4X9-SEAL-JHP JHP COPPER SEAL 1/8" ETG 5-7*
* Optional, should be ordered separately

513
