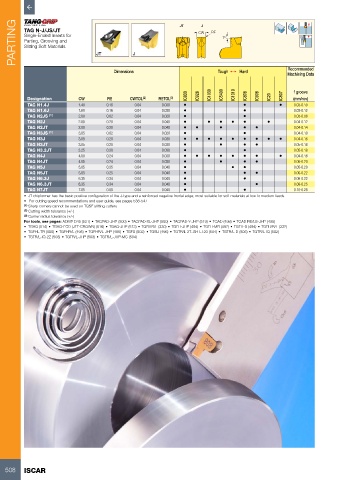

Page 510 - ISCAR(TURNING-CATALOG-42-2022)

PARTING TAG N-J/JS/JT JT CW RE 7º
J

Single-Ended Inserts for
Parting, Grooving and
Slitting Soft Materials

Dimensions Tough 1 Hard Recommended
Machining Data

IC830 IC928 IC1030 IC5400 IC1010 IC808 IC908 IC807 f groove
Designation CW RE CWTOL (2) RETOL (3) IC20 (mm/rev)
TAG N1.4J 1.40 0.16 0.04 0.030 • • • 0.03-0.10
TAG N1.6J 1.60 0.16 0.04 0.030 • • 0.03-0.12
TAG N2JS (1) 2.00 0.02 0.04 0.020 • • 0.03-0.08
TAG N2J 2.00 0.20 0.04 0.040 • • • • • • 0.04-0.12
TAG N2JT 2.00 0.20 0.04 0.040 • • • • • 0.04-0.14
TAG N3JS (1) 3.05 0.02 0.04 0.020 • • 0.04-0.10
TAG N3J 3.05 0.20 0.04 0.030 • • • • • • • • • 0.04-0.16
TAG N3JT 3.05 0.20 0.04 0.030 • • • • 0.05-0.18
TAG N3.2JT 3.25 0.20 0.04 0.030 • • 0.05-0.18
TAG N4J 4.00 0.24 0.04 0.030 • • • • • • • • 0.04-0.18
TAG N4JT 4.05 0.24 0.04 0.030 • • • • 0.06-0.20
TAG N5J 5.05 0.25 0.04 0.040 • • • 0.05-0.20
TAG N5JT 5.05 0.25 0.04 0.040 • • • 0.06-0.22
TAG N6.3J 6.35 0.34 0.04 0.040 • • 0.06-0.22
TAG N6.3JT 6.35 0.34 0.04 0.040 • • 0.08-0.25
TAG N7JT 7.05 0.50 0.04 0.040 • • 0.10-0.28
• JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds.
• For cutting speed recommendations and user guide, see pages 538-547
(1) Sharp corners cannot be used on TGSF slitting cutters
(2) Cutting width tolerance (+/-)
(3) Corner radius tolerance (+/-)
For tools, see pages: ADMP D45 (521) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGAD (498) • TGAD RE/LE-JHP (498)
• TGAQ (514) • TGAQ-ECD (JET-CROWN) (516) • TGAQ-JHP (513) • TGBHR/L (330) • TGFH-JHP (494) • TGFH-MB (497) • TGFH-S (494) • TGFH/R/L (332)
• TGFHL-TR (505) • TGFHR/L (495) • TGFHR/L-JHP (495) • TGFS (502) • TGSU (496) • TGTR/L-2T..SH-L120 (504) • TGTR/L-D (505) • TGTR/L-IQ (502)
• TGTR/L-IQ-2Z (503) • TGTR/L-JHP (503) • TGTR/L-JHP-MC (504)
