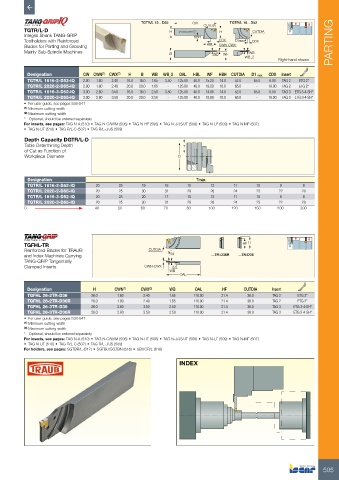

Page 507 - ISCAR(TURNING-CATALOG-42-2022)

TGTR/L 19…D65 OAL TGTR/L 16…D52
TGTR/L-D H CUTDIA H CUTDIA
Integral Shank TANG-GRIP HBH
Toolholders with Reinforced CDX D1max CDX PARTING
Blades for Parting and Grooving HBL CWN-CWX
Mainly Sub-Spindle Machines B WB WF WB
WB_2
Right-hand shown

Designation CW CWN (1) CWX (2) H B WB WB_2 OAL HBL WF HBH CUTDIA D1 max CDX Insert
TGTR/L 1616-2-D52-IQ 2.00 1.80 2.40 16.0 16.0 1.65 3.50 125.00 40.0 15.20 14.0 52.0 65.0 6.00 TAG 2 ETG 2*
TGTR/L 2020-2-D65-IQ 2.00 1.80 2.40 20.0 20.0 1.65 - 125.00 40.0 19.20 10.0 65.0 - 18.00 TAG 2 ETG 2*
TGTR/L 1616-3-D52-IQ 3.00 2.80 3.50 16.0 16.0 2.50 3.50 125.00 40.0 14.80 14.0 52.0 65.0 6.00 TAG 3 ETG 3-4-SH*
TGTR/L 2020-3-D65-IQ 3.00 2.80 3.50 20.0 20.0 2.50 - 125.00 40.0 18.80 10.0 65.0 - 18.00 TAG 3 ETG 3-4-SH*
• For user guide, see pages 538-547
(1) Minimum cutting width
(2) Maximum cutting width
* Optional, should be ordered separately
For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)
• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)
Depth Capacity DGTR/L-D
Table Determining Depth T
of Cut as Function of
Workpiece Diameter D

Designation Tmax
TGTR/L 1616-2-D52-IQ 20 25 19 16 15 13 11 10 9 8
TGTR/L 2020-2-D65-IQ 20 25 30 31 29 26 24 23 22 20
TGTR/L 1616-3-D52-IQ 20 25 20 17 15 13 11 10 9 8
TGTR/L 2020-3-D65-IQ 20 25 30 31 29 26 24 23 22 20
D 40 50 60 70 80 100 120 150 200 300

TGFHL-TR HF H
Reinforced Blades for TRAUB CUTDIA
and Index Machines Carrying 54 ...TR-D36R ...TR-D36
TANG-GRIP Tangentially
Clamped Inserts CWN-CWX 3.5
WB
OAL

Designation H CWN (1) CWX (2) WB OAL HF CUTDIA Insert
TGFHL 26-2TR-D36 26.0 1.80 2.40 1.65 110.00 21.4 36.0 TAG 2 ETG 2*
TGFHL 26-2TR-D36R 26.0 1.80 2.40 1.65 110.00 21.4 36.0 TAG 2 ETG 2*
TGFHL 26-3TR-D36 26.0 2.80 3.50 2.50 110.00 21.4 36.0 TAG 3 ETG 3-4-SH*
TGFHL 26-3TR-D36R 26.0 2.80 3.50 2.50 110.00 21.4 36.0 TAG 3 ETG 3-4-SH*
• For user guide, see pages 538-547
(1) Minimum cutting width
(2) Maximum cutting width
* Optional, should be ordered separately
For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)
• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)
For holders, see pages: SGTBR/L (617) • SGTBU/SGTBN (616) • UBHCR/L (618)
