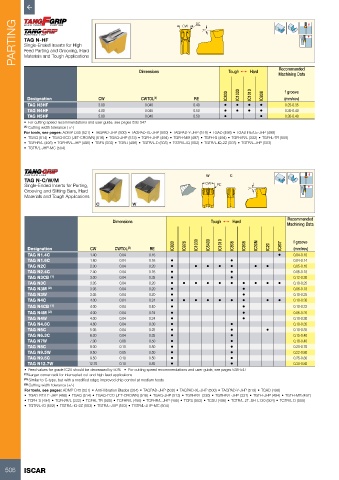

Page 508 - ISCAR(TURNING-CATALOG-42-2022)

PARTING CW RE 7°

TAG N-HF
Single-Ended Inserts for High
Feed Parting and Grooving, Hard
Materials and Tough Applications

Dimensions Tough 1 Hard Recommended
Machining Data

IC830 IC1030 IC1010 IC808 f groove
Designation CW CWTOL (1) RE (mm/rev)
TAG N3HF 3.00 0.040 0.40 • • • • 0.25-0.35
TAG N4HF 4.00 0.040 0.50 • • • • 0.30-0.40
TAG N5HF 5.00 0.040 0.50 • • 0.30-0.40
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-)
For tools, see pages: ADMP D45 (521) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGAD (498) • TGAD RE/LE-JHP (498)
• TGAQ (514) • TGAQ-ECD (JET-CROWN) (516) • TGAQ-JHP (513) • TGFH-JHP (494) • TGFH-MB (497) • TGFH-S (494) • TGFH/R/L (332) • TGFHL-TR (505)
• TGFHR/L (495) • TGFHR/L-JHP (495) • TGFS (502) • TGSU (496) • TGTR/L-D (505) • TGTR/L-IQ (502) • TGTR/L-IQ-2Z (503) • TGTR/L-JHP (503)
• TGTR/L-JHP-MC (504)

W C

TAG N-C/W/M
Single-Ended Inserts for Parting, CW RE
Grooving and Slitting Bars, Hard 7º
Materials and Tough Applications

Recommended
Dimensions Tough 1 Hard
Machining Data

IC830 IC928 IC1030 IC5400 IC1010 IC808 IC908 IC30N IC807 f groove
Designation CW CWTOL (3) RE IC20 (mm/rev)
TAG N1.4C 1.40 0.04 0.16 • 0.04-0.10
TAG N1.6C 1.60 0.04 0.16 • • 0.04-0.14
TAG N2C 2.00 0.04 0.20 • • • • • • • 0.05-0.16
TAG N2.4C 2.40 0.04 0.16 • • 0.06-0.18
TAG N3CB (1) 3.00 0.04 0.35 • • 0.12-0.30
TAG N3C 3.05 0.04 0.20 • • • • • • • • • • 0.10-0.25
TAG N3M (2) 3.05 0.04 0.20 • • 0.06-0.18
TAG N3W 3.05 0.04 0.20 • • 0.10-0.25
TAG N4C 4.00 0.04 0.24 • • • • • • • • • 0.10-0.30
TAG N4CB (1) 4.00 0.04 0.40 • • 0.10-0.33
TAG N4M (2) 4.00 0.04 0.24 • • 0.06-0.20
TAG N4W 4.00 0.04 0.24 • • 0.10-0.30
TAG N4.8C 4.80 0.04 0.30 • • 0.10-0.35
TAG N5C 5.05 0.04 0.25 • • • 0.10-0.35
TAG N6.3C 6.30 0.04 0.35 • • 0.15-0.40
TAG N7W 7.00 0.08 0.50 • • 0.18-0.40
TAG N8C 8.00 0.10 0.50 • • 0.20-0.70
TAG N9.5W 9.50 0.05 0.50 • • 0.22-0.80
TAG N9.5C 9.50 0.10 0.50 • • 0.25-0.80
TAG N12.7W 12.70 0.10 0.85 • • 0.30-0.80
• Feed values for grade IC20 should be decreased by 50% • For cutting speed recommendations and user guide, see pages 538-547
(1) Larger corner radii for interrupted cut and high feed applications
(2) Similar to C-type, but with a modified edge; improved chip control at medium feeds
(3) Cutting width tolerance (+/-)
For tools, see pages: ADMP D45 (521) • Anti-Vibration Blades (284) • TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGAD (498)
• TGAD RE/LE-JHP (498) • TGAQ (514) • TGAQ-ECD (JET-CROWN) (516) • TGAQ-JHP (513) • TGBHR/L (330) • TGBHR/L-JHP (331) • TGFH-JHP (494) • TGFH-MB (497)
• TGFH-S (494) • TGFH/R/L (332) • TGFHL-TR (505) • TGFHR/L (495) • TGFHR/L-JHP (495) • TGFS (502) • TGSU (496) • TGTR/L-2T..SH-L120 (504) • TGTR/L-D (505)
• TGTR/L-IQ (502) • TGTR/L-IQ-2Z (503) • TGTR/L-JHP (503) • TGTR/L-JHP-MC (504)

506 ISCAR
