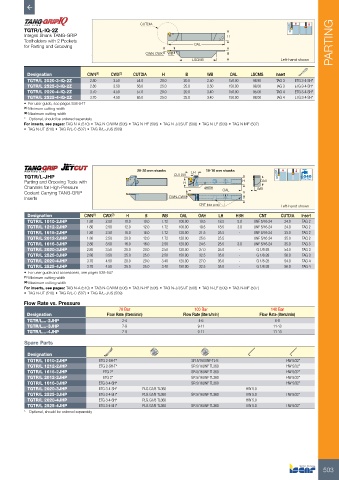

Page 505 - ISCAR(TURNING-CATALOG-42-2022)

CUTDIA
TGTR/L-IQ-2Z
Integral Shank TANG-GRIP H
Toolholders with 2 Pockets PARTING
for Parting and Grooving OAL
CWN-CWX WB B
LSCMS Left-hand shown

Designation CWN (1) CWX (2) CUTDIA H B WB OAL LSCMS Insert
TGTR/L 2020-3-IQ-2Z 2.80 3.50 54.0 20.0 20.0 2.50 150.00 98.90 TAG 3 ETG 3-4-SH*
TGTR/L 2525-3-IQ-2Z 2.80 3.50 56.0 25.0 25.0 2.50 150.00 98.00 TAG 3 ETG 3-4-SH*
TGTR/L 2020-4-IQ-2Z 3.70 4.50 57.0 20.0 20.0 3.40 150.00 95.00 TAG 4 ETG 3-4-SH*
TGTR/L 2525-4-IQ-2Z 3.70 4.50 65.0 25.0 25.0 3.40 150.00 88.00 TAG 4 ETG 3-4-SH*
• For user guide, see pages 538-547
(1) Minimum cutting width
(2) Maximum cutting width
* Optional, should be ordered separately
For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)
• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)

20-25 mm shanks 10-16 mm shanks
TGTR/L-JHP CUTDIA LH
Parting and Grooving Tools with H H OAH Bar Max
Channels for High-Pressure HBH OAL WB
Coolant Carrying TANG-GRIP
Inserts CWN-CWX B
CNT (Inlet ports) Left-hand shown

Designation CWN (1) CWX (2) H B WB OAL OAH LH HBH CNT CUTDIA Insert
TGTR/L 1010-2JHP 1.80 2.50 10.0 10.0 1.72 100.00 19.5 18.5 5.0 UNF 5/16-24 24.0 TAG 2
TGTR/L 1212-2JHP 1.80 2.50 12.0 12.0 1.72 100.00 19.5 18.5 3.0 UNF 5/16-24 24.0 TAG 2
TGTR/L 1616-2JHP 1.80 2.50 16.0 16.0 1.72 120.00 21.5 25.5 - UNF 5/16-24 35.0 TAG 2
TGTR/L 2012-2JHP 1.80 2.50 20.0 12.0 1.72 120.00 25.6 25.5 - UNF 5/16-24 35.0 TAG 2
TGTR/L 1616-3JHP 2.80 3.50 16.0 16.0 2.50 120.00 24.5 25.5 3.0 UNF 5/16-24 35.0 TAG 3
TGTR/L 2020-3JHP 2.80 3.50 20.0 20.0 2.50 120.00 27.0 35.0 - G 1/8-28 54.0 TAG 3
TGTR/L 2525-3JHP 2.80 3.50 25.0 25.0 2.50 150.00 32.5 35.0 - G 1/8-28 56.0 TAG 3
TGTR/L 2020-4JHP 3.70 4.50 20.0 20.0 3.40 120.00 27.0 35.0 - G 1/8-28 54.0 TAG 4
TGTR/L 2525-4JHP 3.70 4.50 25.0 25.0 3.40 150.00 32.5 35.0 - G 1/8-28 56.0 TAG 4
• For user guide and accessories, see pages 538-547
(1) Minimum cutting width
(2) Maximum cutting width
For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)
• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)
Flow Rate vs. Pressure
70 Bar 100 Bar 140 Bar
Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min)
TGTR/L...-2JHP 2-4 4-6 6-8
TGTR/L...-3JHP 7-9 9-11 11-13
TGTR/L...-4JHP 7-9 9-11 11-13

Spare Parts

Designation
TGTR/L 1010-2JHP ETG 2-SH-T* SR 5/16XUNF-TL-S HW 5/32"
TGTR/L 1212-2JHP ETG 2-SH-T* SR 5/16UNF TL360 HW 5/32"
TGTR/L 1616-2JHP ETG 2* SR 5/16UNF TL360 HW 5/32"
TGTR/L 2012-2JHP ETG 2* SR 5/16UNF TL360 HW 5/32"
TGTR/L 1616-3JHP ETG 3-4-SH* SR 5/16UNF TL360 HW 5/32"
TGTR/L 2020-3JHP ETG 3-4-SH* PLG G1/8 TL360 HW 5.0
TGTR/L 2525-3JHP ETG 3-4-SH* PLG G1/8 TL360 SR 5/16UNF TL360 HW 5.0 HW 5/32"
TGTR/L 2020-4JHP ETG 3-4-SH* PLG G1/8 TL360 HW 5.0
TGTR/L 2525-4JHP ETG 3-4-SH* PLG G1/8 TL360 SR 5/16UNF TL360 HW 5.0 HW 5/32"
* Optional, should be ordered separately

503
