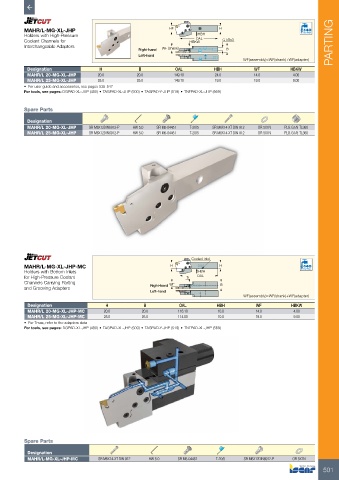

Page 503 - ISCAR(TURNING-CATALOG-42-2022)

MAHR/L-MG-XL-JHP HF H
Holders with High-Pressure HBH Bar Max
OAL
Coolant Channels for HBKW G1/8x3 PARTING
Interchangeable Adapters
Right-hand WF (shank) B
Left-hand
WF(assembly)=WF(shank)+WF(adapter)
Designation H B OAL HBH WF HBKW
MAHR/L 20-MG-XL-JHP 20.0 20.0 149.10 24.0 14.0 4.00
MAHR/L 25-MG-XL-JHP 25.0 25.0 149.10 19.0 19.0 9.00
• For user guide and accessories, see pages 538-547
For tools, see pages: DGPAD-XL-JHP (480) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TNFPAD-XL-JHP (569)

Spare Parts

Designation
MAHR/L 20-MG-XL-JHP SR M6X12DIN6912-P HW 5.0 SR M5-04451 T-20/5 SR M6X14-XT DIN 912 OR 5X1N PLG G1/8 TL360
MAHR/L 25-MG-XL-JHP SR M6X12DIN6912-P HW 5.0 SR M5-04451 T-20/5 SR M6X14-XT DIN 912 OR 5X1N PLG G1/8 TL360

Coolant inlet

MAHR/L-MG-XL-JHP-MC H H
Holders with Bottom Inlets HBH Bar Max
for High-Pressure Coolant f3 OAL
Channels Carrying Parting WF B
and Grooving Adapters Right-hand
Left-hand
WF(assembly)=WF(shank)+WF(adapter)
Designation H B OAL HBH WF HBKW
MAHR/L 20-MG-XL-JHP-MC 20.0 20.0 116.10 10.0 14.0 4.00
MAHR/L 25-MG-XL-JHP-MC 25.0 25.0 114.00 10.0 19.0 9.00
• For Tmax, refer to the adapters data
For tools, see pages: DGPAD-XL-JHP (480) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TNFPAD-XL-JHP (569)

Spare Parts

Designation
MAHR/L-MG-XL-JHP-MC SR M6X14-XT DIN 912 HW 5.0 SR M5-04451 T-20/5 SR M6X12DIN6912-P OR 5X1N
501
