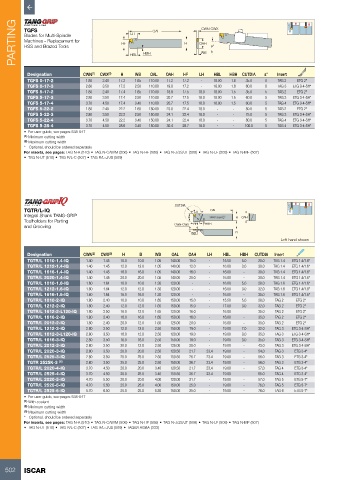

P. 504
PARTING TGFS HF LH HBH OAL H OAH a°
CWN-CWX
Blades for Multi-Spindle
Machines - Replacement for
HSS and Brazed Tools
WB
HBL
Designation CWN (1) CWX (2) H WB OAL OAH HF LH HBL HBH CUTDIA a° Insert
TGFS 0-17-2 1.80 2.40 17.2 1.65 110.00 17.2 17.2 - 18.00 1.8 35.0 0 TAG 2 ETG 2*
TGFS 0-17-3 2.80 3.50 17.2 2.50 110.00 19.0 17.2 - 18.00 1.8 60.0 0 TAG 3 ETG 3-4-SH*
TGFS 5-17-2 1.80 2.40 17.4 1.65 110.00 18.9 17.5 18.0 18.00 1.5 35.0 5 TAG 2 ETG 2*
TGFS 5-17-3 2.80 3.50 17.4 2.50 110.00 20.7 17.5 18.0 18.00 1.5 60.0 5 TAG 3 ETG 3-4-SH*
TGFS 5-17-4 3.70 4.50 17.4 3.40 110.00 20.7 17.5 18.0 18.00 1.5 60.0 5 TAG 4 ETG 3-4-SH*
TGFS 5-22-2 1.80 2.40 22.2 1.65 150.00 23.8 22.4 18.0 - - 50.0 5 TAG 2 ETG 2*
TGFS 5-22-3 2.80 3.50 22.2 2.50 150.00 24.1 22.4 18.0 - - 75.0 5 TAG 3 ETG 3-4-SH*
TGFS 5-22-4 3.70 4.50 22.2 3.40 150.00 24.1 22.4 18.0 - - 80.0 5 TAG 4 ETG 3-4-SH*
TGFS 5-28-4 3.70 4.50 28.6 3.40 150.00 30.4 28.7 18.0 - - 100.0 5 TAG 4 ETG 3-4-SH*
• For user guide, see pages 538-547
(1) Minimum cutting width
(2) Maximum cutting width
* Optional, should be ordered separately
For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)
• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)
CUTDIA
TGTR/L-IQ LH OAL
Integral Shank TANG-GRIP H H OAH
Toolholders for Parting HBL HBH
and Grooving CWN-CWX
WB B
Left-hand shown
Designation CWN (2) CWX (3) H B WB OAL OAH LH HBL HBH CUTDIA Insert
TGTR/L 1010-1.4-IQ 1.40 1.45 10.0 10.0 1.05 140.00 15.0 - 15.50 5.0 20.0 TAG 1.4 ETG 1.4/1.6*
TGTR/L 1212-1.4-IQ 1.40 1.45 12.0 12.0 1.05 140.00 12.0 - 16.00 3.0 30.0 TAG 1.4 ETG 1.4/1.6*
TGTR/L 1616-1.4-IQ 1.40 1.45 16.0 16.0 1.05 140.00 16.0 - 16.00 - 30.0 TAG 1.4 ETG 1.4/1.6*
TGTR/L 2020-1.4-IQ 1.40 1.45 20.0 20.0 1.05 140.00 20.0 - 16.00 - 30.0 TAG 1.4 ETG 1.4/1.6*
TGTR/L 1010-1.6-IQ 1.60 1.64 10.0 10.0 1.30 120.00 - - 16.00 5.0 28.0 TAG 1.6 ETG 1.4/1.6*
TGTR/L 1212-1.6-IQ 1.60 1.64 12.0 12.0 1.30 120.00 - - 16.00 3.0 32.0 TAG 1.6 ETG 1.4/1.6*
TGTR/L 1616-1.6-IQ 1.60 1.64 16.0 16.0 1.30 120.00 - - 16.00 - 35.0 TAG 1.6 ETG 1.4/1.6*
TGTR/L 1010-2-IQ 1.80 2.40 10.0 10.0 1.65 150.00 15.0 - 15.50 5.0 28.0 TAG 2 ETG 2*
TGTR/L 1212-2-IQ 1.80 2.40 12.0 12.0 1.65 150.00 15.0 - 17.00 3.0 32.0 TAG 2 ETG 2*
TGTR/L 1612-2-L120-IQ 1.80 2.50 16.0 12.0 1.65 120.00 16.0 - 16.00 - 35.0 TAG 2 ETG 2*
TGTR/L 1616-2-IQ 1.80 2.40 16.0 16.0 1.65 150.00 16.0 - 16.00 - 35.0 TAG 2 ETG 2*
TGTR/L 2012-2-IQ 1.80 2.40 20.0 12.0 1.65 125.00 20.0 - 16.00 - 35.0 TAG 2 ETG 2*
TGTR/L 1212-3-IQ 2.80 3.50 12.0 12.0 2.50 150.00 19.0 - 19.00 7.0 32.0 TAG 3 ETG 3-4-SH*
TGTR/L 1612-3-L120-IQ 2.80 3.50 16.0 12.0 2.50 120.00 19.0 - 19.00 3.0 35.0 TAG 3 ETG 3-4-SH*
TGTR/L 1616-3-IQ 2.80 3.50 16.0 16.0 2.50 150.00 19.0 - 19.00 3.0 35.0 TAG 3 ETG 3-4-SH*
TGTR/L 2012-3-IQ 2.80 3.50 20.0 12.0 2.50 125.00 20.0 - 19.00 - 43.0 TAG 3 ETG 3-4-SH*
TGTR/L 2020-3-IQ 2.80 3.50 20.0 20.0 2.50 120.50 21.7 23.4 19.00 - 54.0 TAG 3 ETG 3-4*
TGTR/L 2525-3-IQ 2.80 3.50 25.0 25.0 2.50 150.50 26.7 23.4 19.00 - 56.0 TAG 3 ETG 3-4*
TGTR 2525K-3 (1) 2.80 3.50 25.0 25.0 2.50 150.00 26.7 23.4 19.00 - 56.0 TAG 3 ETG 3-4*
TGTR/L 2020-4-IQ 3.70 4.50 20.0 20.0 3.40 120.50 21.7 23.4 19.00 - 57.0 TAG 4 ETG 3-4*
TGTR/L 2525-4-IQ 3.70 4.50 25.0 25.0 3.40 150.50 26.7 23.4 19.00 - 65.0 TAG 4 ETG 3-4*
TGTR/L 2020-5-IQ 4.70 5.50 20.0 20.0 4.00 120.00 21.7 - 19.00 - 57.0 TAG 5 ETG 5-7*
TGTR/L 2525-5-IQ 4.70 5.50 25.0 25.0 4.00 150.00 25.0 - 19.00 - 76.0 TAG 5 ETG 5-7*
TGTR/L 2525-6-IQ 5.70 6.50 25.0 25.0 5.20 150.00 25.0 - 19.00 - 76.0 TAG 6 ETG 5-7*
• For user guide, see pages 538-547
(1) With coolant
(2) Minimum cutting width
(3) Maximum cutting width
* Optional, should be ordered separately
For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)
• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509) • TAGB/TAGBA (333)
