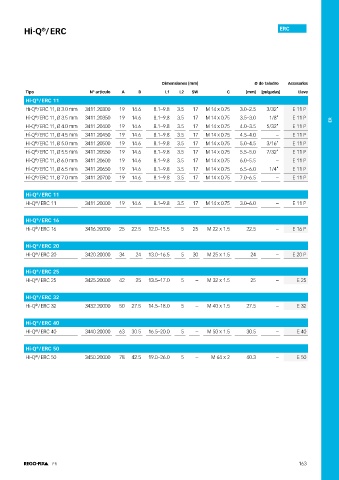

Hi-Q / ERC ERC
®

Dimensiones [mm] Ø de taladro Accesorios
Tipo Nº artículo A B L1 L2 SW C [mm] [pulgadas] Llave
®
Hi-Q / ERC 11
®
Hi-Q / ERC 11, Ø 3.0 mm 3411.20300 19 14.6 8.1–9.8 3.5 17 M 14 x 0.75 3.0–2.5 3/32" E 11 P
®
Hi-Q / ERC 11, Ø 3.5 mm 3411.20350 19 14.6 8.1–9.8 3.5 17 M 14 x 0.75 3.5–3.0 1/8" E 11 P
ER
®
Hi-Q / ERC 11, Ø 4.0 mm 3411.20400 19 14.6 8.1–9.8 3.5 17 M 14 x 0.75 4.0–3.5 5/32" E 11 P
Hi-Q / ERC 11, Ø 4.5 mm 3411.20450 19 14.6 8.1–9.8 3.5 17 M 14 x 0.75 4.5–4.0 – E 11 P
®
®
Hi-Q / ERC 11, Ø 5.0 mm 3411.20500 19 14.6 8.1–9.8 3.5 17 M 14 x 0.75 5.0–4.5 3/16" E 11 P
®
Hi-Q / ERC 11, Ø 5.5 mm 3411.20550 19 14.6 8.1–9.8 3.5 17 M 14 x 0.75 5.5–5.0 7/32" E 11 P
®
Hi-Q / ERC 11, Ø 6.0 mm 3411.20600 19 14.6 8.1–9.8 3.5 17 M 14 x 0.75 6.0–5.5 – E 11 P
®
Hi-Q / ERC 11, Ø 6.5 mm 3411.20650 19 14.6 8.1–9.8 3.5 17 M 14 x 0.75 6.5–6.0 1/4" E 11 P
Hi-Q / ERC 11, Ø 7.0 mm 3411.20700 19 14.6 8.1–9.8 3.5 17 M 14 x 0.75 7.0–6.5 – E 11 P
®
Hi-Q / ERC 11
®
®
Hi-Q / ERC 11 3411.20000 19 14.6 8.1–9.8 3.5 17 M 14 x 0.75 3.0–6.0 – E 11 P

®
Hi-Q / ERC 16
Hi-Q / ERC 16 3416.20000 25 22.5 12.0–15.5 5 25 M 22 x 1.5 22.5 – E 16 P
®
Hi-Q / ERC 20
®
Hi-Q / ERC 20 3420.20000 34 24 13.0–16.5 5 30 M 25 x 1.5 24 – E 20 P
®

®
Hi-Q / ERC 25
Hi-Q / ERC 25 3425.20000 42 25 13.5–17.0 5 – M 32 x 1.5 25 – E 25
®
Hi-Q / ERC 32
®
®
Hi-Q / ERC 32 3432.20000 50 27.5 14.5–18.0 5 – M 40 x 1.5 27.5 – E 32

®
Hi-Q / ERC 40
Hi-Q / ERC 40 3440.20000 63 30.5 16.5–20.0 5 – M 50 x 1.5 30.5 – E 40
®

Hi-Q / ERC 50
®
Hi-Q / ERC 50 3450.20000 78 42.5 19.0–26.0 5 – M 64 x 2 40.3 – E 50
®

ER 163
