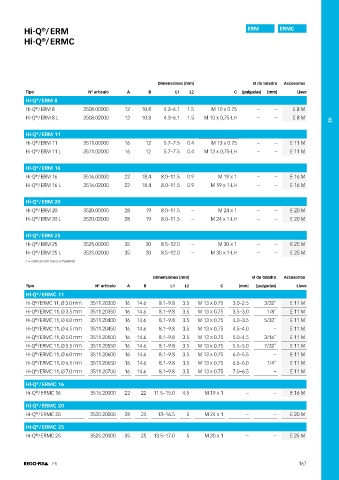

Page 171 - Catalogo_Rego-Fix

Hi-Q / ERM ERM ERMC
®
Hi-Q / ERMC
®

Dimensiones [mm] Ø de taladro Accesorios
Tipo Nº artículo A B L1 L2 C [pulgadas] [mm] Llave
®
Hi-Q / ERM 8
®
Hi-Q / ERM 8 3508.00000 12 10.8 4.3–6.1 1.5 M 10 x 0.75 – – E 8 M
Hi-Q / ERM 8 L 3508.02000 12 10.8 4.3–6.1 1.5 M 10 x 0,75-LH – – E 8 M
®
ER
Hi-Q / ERM 11
®
Hi-Q / ERM 11 3511.00000 16 12 5.7–7.5 0.4 M 13 x 0.75 – – E 11 M
®
Hi-Q / ERM 11 L 3511.02000 16 12 5.7–7.5 0.4 M 13 x 0,75-LH – – E 11 M
®
Hi-Q / ERM 16
®
Hi-Q / ERM 16 3516.00000 22 18.4 8.0–11.5 0.9 M 19 x 1 – – E 16 M
®
Hi-Q / ERM 16 L 3516.02000 22 18.4 8.0–11.5 0.9 M 19 x 1-LH – – E 16 M
®

Hi-Q / ERM 20
®
Hi-Q / ERM 20 3520.00000 28 19 8.0–11.5 – M 24 x 1 – – E 20 M
®
Hi-Q / ERM 20 L 3520.02000 28 19 8.0–11.5 – M 24 x 1-LH – – E 20 M
®
Hi-Q / ERM 25
®
®
Hi-Q / ERM 25 3525.00000 35 20 8.5–12.0 – M 30 x 1 – – E 25 M
®
Hi-Q / ERM 25 L 3525.02000 35 20 8.5–12.0 – M 30 x 1-LH – – E 25 M
L = Tuercas con rosca a izquierda

Dimensiones [mm] Ø de taladro Accesorios
Tipo Nº artículo A B L1 L2 C [mm] [pulgadas] Llave
Hi-Q / ERMC 11
®
®
Hi-Q /ERMC 11, Ø 3.0 mm 3511.20300 16 14.6 8.1–9.8 3.5 M 13 x 0.75 3.0–2.5 3/32" E 11 M
®
Hi-Q / ERMC 11, Ø 3.5 mm 3511.20350 16 14.6 8.1–9.8 3.5 M 13 x 0.75 3.5–3.0 1/8" E 11 M
®
Hi-Q / ERMC 11, Ø 4.0 mm 3511.20400 16 14.6 8.1–9.8 3.5 M 13 x 0.75 4.0–3.5 5/32" E 11 M
®
Hi-Q / ERMC 11, Ø 4.5 mm 3511.20450 16 14.6 8.1–9.8 3.5 M 13 x 0.75 4.5–4.0 – E 11 M
Hi-Q / ERMC 11, Ø 5.0 mm 3511.20500 16 14.6 8.1–9.8 3.5 M 13 x 0.75 5.0–4.5 3/16" E 11 M
®
Hi-Q / ERMC 11, Ø 5.5 mm 3511.20550 16 14.6 8.1–9.8 3.5 M 13 x 0.75 5.5–5.0 7/32" E 11 M
®
®
Hi-Q / ERMC 11, Ø 6.0 mm 3511.20600 16 14.6 8.1–9.8 3.5 M 13 x 0.75 6.0–5.5 – E 11 M
Hi-Q / ERMC 11, Ø 6.5 mm 3511.20650 16 14.6 8.1–9.8 3.5 M 13 x 0.75 6.5–6.0 1/4" E 11 M
®
Hi-Q / ERMC 11, Ø 7.0 mm 3511.20700 16 14.6 8.1–9.8 3.5 M 13 x 0.75 7.0–6.5 – E 11 M
®
Hi-Q / ERMC 16
®
Hi-Q / ERMC 16 3516.20000 22 22 11.5–15.0 4.5 M 19 x 1 – – E 16 M
®
®
Hi-Q / ERMC 20
Hi-Q / ERMC 20 3520.20000 28 24 13–16.5 5 M 24 x 1 – – E 20 M
®
Hi-Q / ERMC 25
®
Hi-Q / ERMC 25 3525.20000 35 25 13.5–17.0 5 M 30 x 1 – – E 25 M
®
