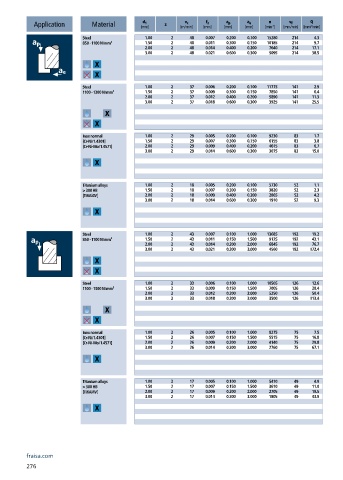

Page 278 - 21-036 APPLITEC catalogue.indb

v c
a e
d 1
a p
n
v f
f z
Q
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [mm /min]
3
Steel 1.00 2 48 0.007 0.200 0.100 15280 214 4.3
850 - 1100 N/mm² 1.50 2 48 0.011 0.300 0.150 10185 214 9.7
2.00 2 48 0.014 0.400 0.200 7640 214 17.1
3.00 2 48 0.021 0.600 0.300 5095 214 38.5
Steel 1.00 2 37 0.006 0.200 0.100 11775 141 2.9
1100 - 1300 N/mm² 1.50 2 37 0.009 0.300 0.150 7850 141 6.4
2.00 2 37 0.012 0.400 0.200 5890 141 11.3
3.00 2 37 0.018 0.600 0.300 3925 141 25.5
Inox normal 1.00 2 29 0.005 0.200 0.100 9230 83 1.7
[Cr-Ni/1.4301] 1.50 2 29 0.007 0.300 0.150 6155 83 3.8
[Cr-Ni-Mo/1.4571] 2.00 2 29 0.009 0.400 0.200 4615 83 6.7
3.00 2 29 0.014 0.600 0.300 3075 83 15.0

Titanium alloys 1.00 2 18 0.005 0.200 0.100 5730 52 1.1
> 300 HB 1.50 2 18 0.007 0.300 0.150 3820 52 2.3
[Ti6Al4V] 2.00 2 18 0.009 0.400 0.200 2865 52 4.2
3.00 2 18 0.014 0.600 0.300 1910 52 9.3

Steel 1.00 2 43 0.007 0.100 1.000 13685 192 19.2
850 - 1100 N/mm² 1.50 2 43 0.011 0.150 1.500 9125 192 43.1
2.00 2 43 0.014 0.200 2.000 6845 192 76.7
3.00 2 43 0.021 0.300 3.000 4560 192 172.4

Steel 1.00 2 33 0.006 0.100 1.000 10505 126 12.6
1100 - 1300 N/mm² 1.50 2 33 0.009 0.150 1.500 7005 126 28.4
2.00 2 33 0.012 0.200 2.000 5250 126 50.4
3.00 2 33 0.018 0.300 3.000 3500 126 113.4

Inox normal 1.00 2 26 0.005 0.100 1.000 8275 75 7.5
[Cr-Ni/1.4301] 1.50 2 26 0.007 0.150 1.500 5515 75 16.8
[Cr-Ni-Mo/1.4571] 2.00 2 26 0.009 0.200 2.000 4140 75 29.8
3.00 2 26 0.014 0.300 3.000 2760 75 67.1

Titanium alloys 1.00 2 17 0.005 0.100 1.000 5410 49 4.9
> 300 HB 1.50 2 17 0.007 0.150 1.500 3610 49 11.0
[Ti6Al4V] 2.00 2 17 0.009 0.200 2.000 2705 49 19.5
3.00 2 17 0.014 0.300 3.000 1805 49 43.9

fraisa.com
276
