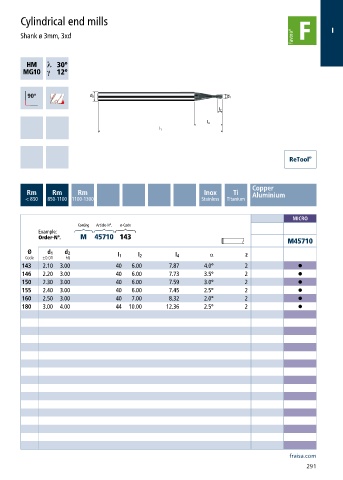

Cylindrical end mills
I
Shank ø 3mm, 3xd

h ƍ
a ƍ

Copper
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium

MICRO
Coating Article-N°. ø-Code
Example:
Order-N°. M 45710 143
M45710
Ø d 1 d 2 α
Code ±0.01 h6 l 1 l 2 l 4 z
143 2.10 3.00 40 6.00 7.87 4.0° 2 •
146 2.20 3.00 40 6.00 7.73 3.5° 2 •
150 2.30 3.00 40 6.00 7.59 3.0° 2 •
155 2.40 3.00 40 6.00 7.45 2.5° 2 •
160 2.50 3.00 40 7.00 8.32 2.0° 2 •
180 3.00 4.00 44 10.00 12.36 2.5° 2 •

fraisa.com
291
