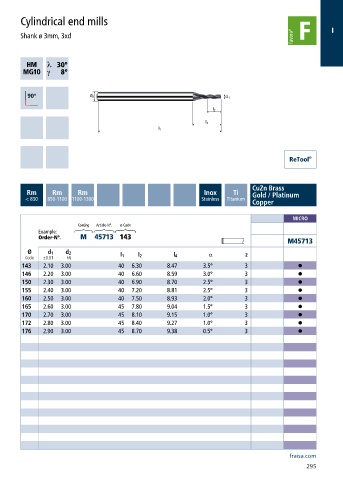

Cylindrical end mills
I
Shank ø 3mm, 3xd
h ƍ
a ƍ
CuZn Brass
Rm Rm Rm Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 Stainless Titanium
Copper
MICRO
Coating Article-N°. ø-Code
Example:
Order-N°. M 45713 143
M45713
Ø d 1 d 2 α
Code ±0.01 h6 l 1 l 2 l 4 z
143 2.10 3.00 40 6.30 8.47 3.5° 3 •
146 2.20 3.00 40 6.60 8.59 3.0° 3 •
150 2.30 3.00 40 6.90 8.70 2.5° 3 •
155 2.40 3.00 40 7.20 8.81 2.5° 3 •
160 2.50 3.00 40 7.50 8.93 2.0° 3 •
165 2.60 3.00 45 7.80 9.04 1.5° 3 •
170 2.70 3.00 45 8.10 9.15 1.0° 3 •
172 2.80 3.00 45 8.40 9.27 1.0° 3 •
176 2.90 3.00 45 8.70 9.38 0.5° 3 •
