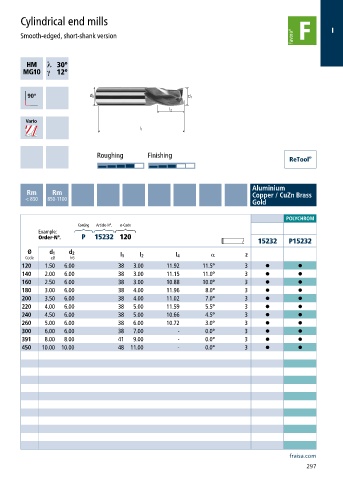

Cylindrical end mills
I
Smooth-edged, short-shank version
h ƍ
a ƍ
Roughing Finishing
Aluminium
Rm Rm Copper / CuZn Brass
< 850 850-1100
Gold
POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 15232 120
15232 P15232
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 z
120 1.50 6.00 38 3.00 11.92 11.5° 3 • •
140 2.00 6.00 38 3.00 11.15 11.0° 3 • •
160 2.50 6.00 38 3.00 10.88 10.0° 3 • •
180 3.00 6.00 38 4.00 11.96 8.0° 3 • •
200 3.50 6.00 38 4.00 11.02 7.0° 3 • •
220 4.00 6.00 38 5.00 11.59 5.5° 3 • •
240 4.50 6.00 38 5.00 10.66 4.5° 3 • •
260 5.00 6.00 38 6.00 10.72 3.0° 3 • •
300 6.00 6.00 38 7.00 - 0.0° 3 • •
391 8.00 8.00 41 9.00 - 0.0° 3 • •
450 10.00 10.00 48 11.00 - 0.0° 3 • •
