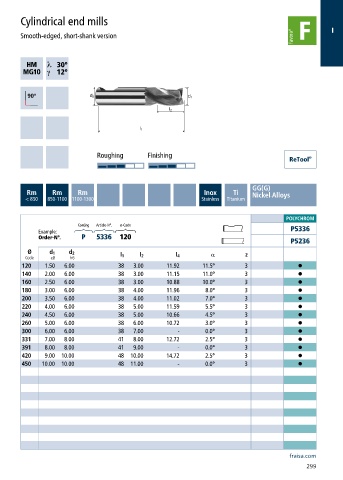

Cylindrical end mills
I
Smooth-edged, short-shank version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Inox Ti Nickel-Alloys
< 850 850-1100 1100-1300 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P5336
Order-N°. P 5336 120
P5236
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 z
120 1.50 6.00 38 3.00 11.92 11.5° 3 •
140 2.00 6.00 38 3.00 11.15 11.0° 3 •
160 2.50 6.00 38 3.00 10.88 10.0° 3 •
180 3.00 6.00 38 4.00 11.96 8.0° 3 •
200 3.50 6.00 38 4.00 11.02 7.0° 3 •
220 4.00 6.00 38 5.00 11.59 5.5° 3 •
240 4.50 6.00 38 5.00 10.66 4.5° 3 •
260 5.00 6.00 38 6.00 10.72 3.0° 3 •
300 6.00 6.00 38 7.00 - 0.0° 3 •
331 7.00 8.00 41 8.00 12.72 2.5° 3 •
391 8.00 8.00 41 9.00 - 0.0° 3 •
420 9.00 10.00 48 10.00 14.72 2.5° 3 •
450 10.00 10.00 48 11.00 - 0.0° 3 •
